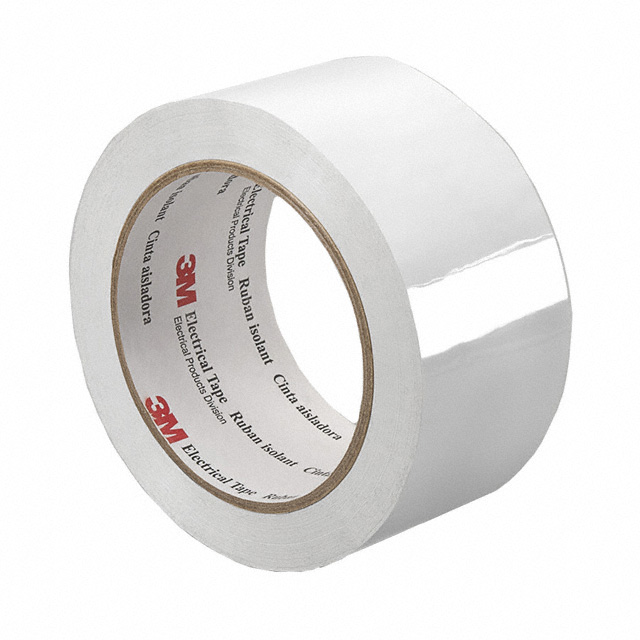

1350 TAPE(1)WHITE
Obsolete3M Electronic Specialty
TAPE ELECTRICAL WHITE 1"X72YDS
1350 TAPE(1)WHITE
Obsolete3M Electronic Specialty
TAPE ELECTRICAL WHITE 1"X72YDS
Description
General part information
1350 TAPE(1)WHITE
Electrical Tape Acrylic Adhesive White 1.00" (25.40mm) X 216' (66.0m) 72 yds
Technical Specifications
Parameters and characteristics for this part
| Specification | 1350 TAPE(1)WHITE |
|---|---|
| Adhesive | Acrylic |
| Backing | Polyester Film |
| Carrier | Polyester Film |
| Color | White |
| Length (ft) | 216 ft |
| Length (yd) | 72 yd |
| Tape Type | Electrical |
| Temperature Range (Max) | 266 °F |
| Thickness | 0.0025 in |
| Thickness - Adhesive | 0.0015 in |
| Thickness - Backing, Carrier | 0.001 in |
| Usage | Insulating, High Temperature |
| Width | 1 in |
