Description
General part information

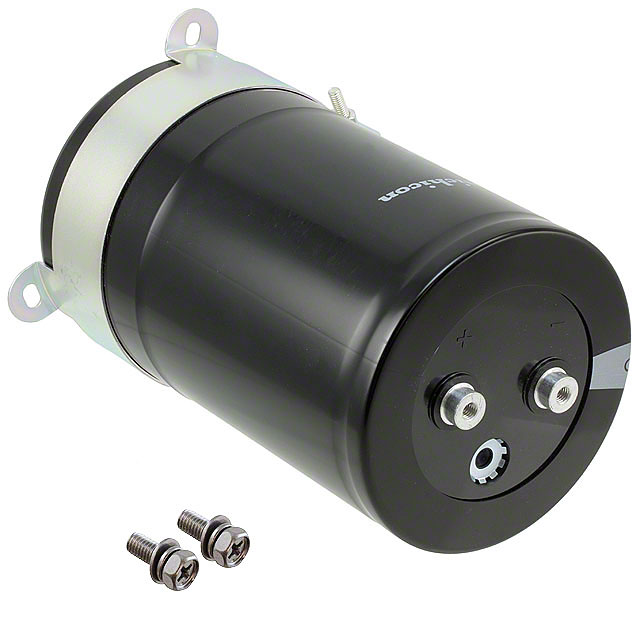

LNX2W562MSEJ
5600 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNX2W562MSEJ |
|---|---|
| Applications | General Purpose |
| Capacitance | 5600 µF |
| Height - Seated (Max) | 6.024 in |
| Lead Spacing | 1.252 in |
| Lifetime | 20000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 26.74 A, 19.1 A |
| Size / Dimension Diameter | 3.543 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
