Description

General part information

LCCN3037

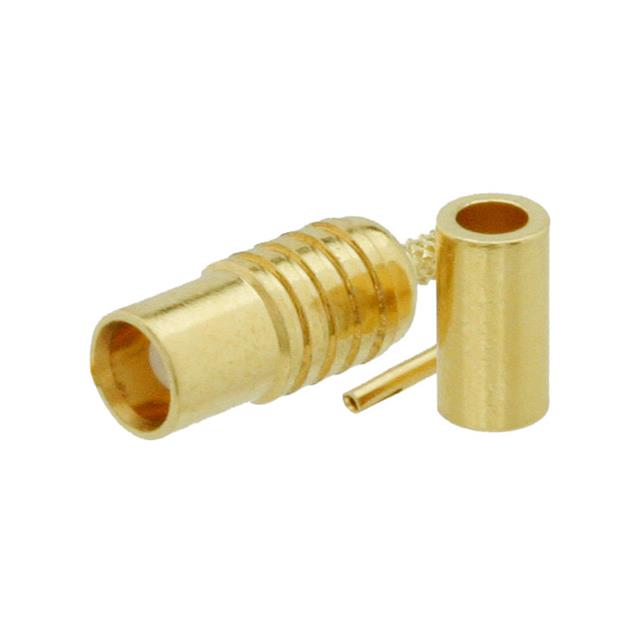

MCX Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical Specifications

Parameters and characteristics for this part

SpecificationLCCN3037
Body FinishGold
Body MaterialBrass
Cable GroupRG-178
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleMCX
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max6000 MHz
Housing ColorGold
Impedance50 Ohm
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature (Max)165 °C
Operating Temperature (Min)-65 °C
Shield TerminationCrimp
Voltage Rating333 V
