9D.01.5.175.0210
ActiveFinder Relays, Inc.
POWER DIST BLOCK 175 A 12POS
9D.01.5.175.0210
ActiveFinder Relays, Inc.
POWER DIST BLOCK 175 A 12POS
Description
General part information
9D.01.5.175.0210

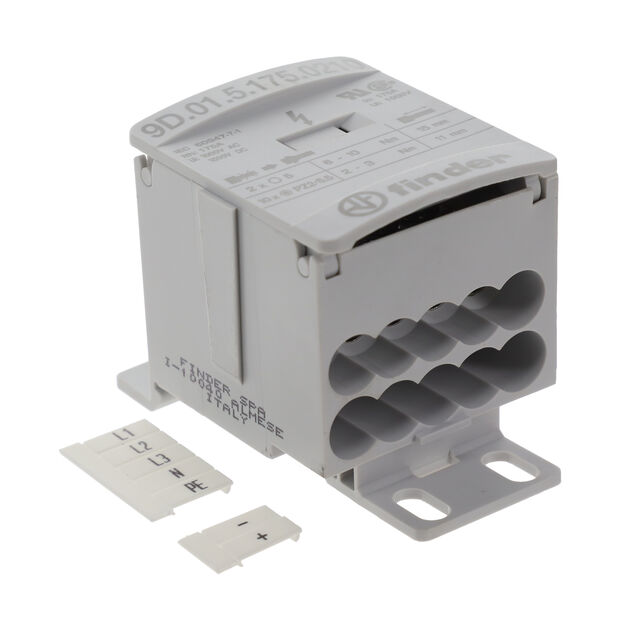

1 Pole Power Distribution Block 175 A
Technical Specifications
Parameters and characteristics for this part
| Specification | 9D.01.5.175.0210 |
|---|---|
| Current Rating | 175 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire Size (Max) | 6 AWG |
| Line Side Wire Size (Min) | 2 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 10 |
| Load Side Wire/Stud Size (AWG) (Max) | 14 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 6 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
