BSH1002P12A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 KEYED ABS NOBRK S
BSH1002P12A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 KEYED ABS NOBRK S
Description
General part information
BSH1002P12A1A

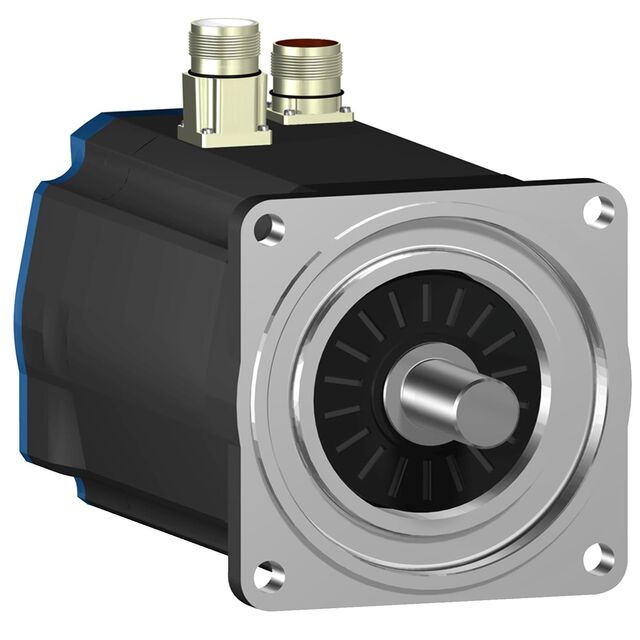

AC Motor Servomotor 6000 RPM 2.15kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH1002P12A1A |
|---|---|
| Diameter - Shaft | 0.748 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.575 in |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 2.15 kW |
| RPM | 6000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 5800 mNm |
| Torque - Rated (oz-in) | 821.3 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
