MO063001-4
ActiveDB Unlimited

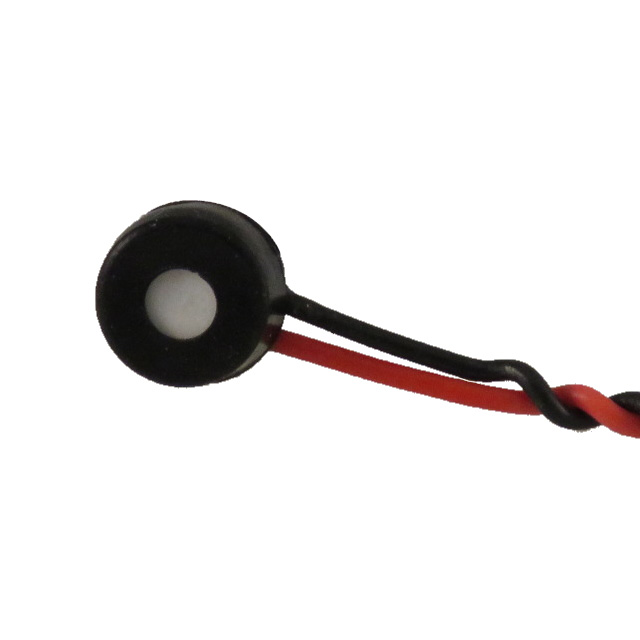

MIC COND ANLG OMNI -30DB 0.236"D
MO063001-4
ActiveDB Unlimited
MIC COND ANLG OMNI -30DB 0.236"D
Description
General part information
MO063001-4
100 Hz ~ 8 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Omnidirectional (-30dB ±3dB) Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | MO063001-4 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 8 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.114 in |
| Output Type | Analog |
| Port Location | Top |
| Ratings | Waterproof, IP67 - Dust Tight |
| S/N Ratio | 58 dB |
| Sensitivity (Nominal) | -30 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.236 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VAC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 1 V |
