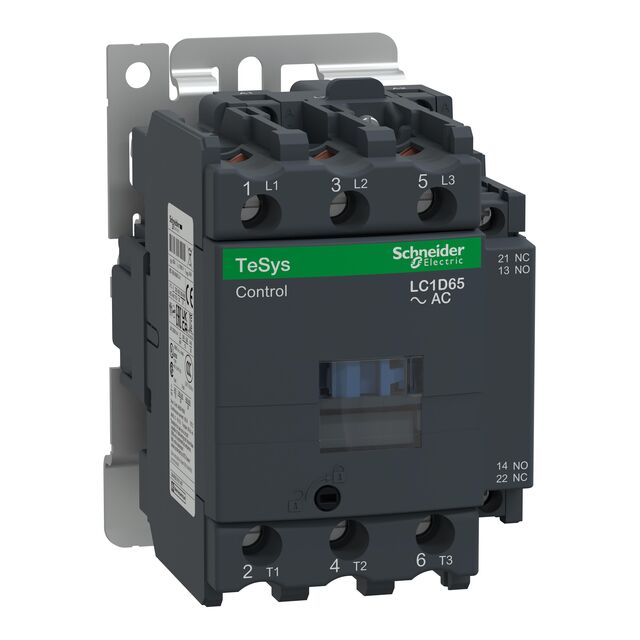

LC1D65M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 65AMP IEC OPTIONS ROHS COMPLIANT: YES
LC1D65M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 65AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC1D65M7
CONTACTOR 600VAC 65AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D65M7 |
|---|---|
| Coil Voltage | 48 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 65 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 38.4 V |
| Must Release Voltage | 14.4 VDC |
| Operate Time | 26 ms |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
