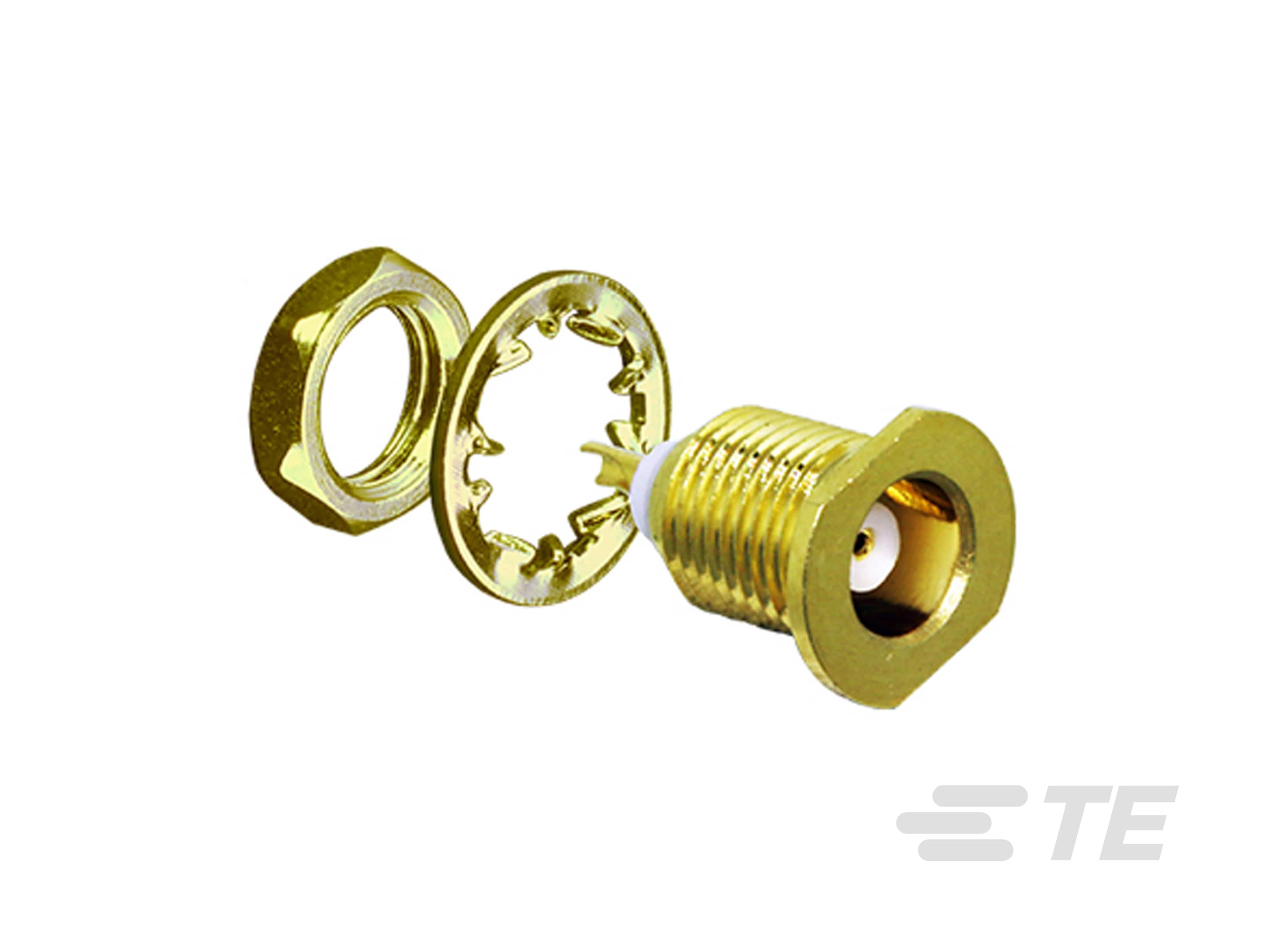

Specification	CONMCX004

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Recepture, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max	6000 MHz
Housing Color	Gold
Impedance	50 Ohm
Includes	Lockwasher, Nut, Connector
Includes Total Count	3 pcs
Insertion Loss	0.1 dB
Mating Cycles	500 cycles
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

CONMCX Series

RF Connectors / Coaxial Connectors SEE 9631-7179-10

Part	Fastening Type	Connector Type	Connector Style	Mounting Feature	Center Contact Material	Frequency - Max	Mounting Type	Impedance	Contact Termination	Housing Color	Shield Termination	Number of Ports	Body Finish	Includes Total Count	Includes	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Dielectric Material	Insertion Loss	Mating Cycles	Cable Group	Voltage Rating

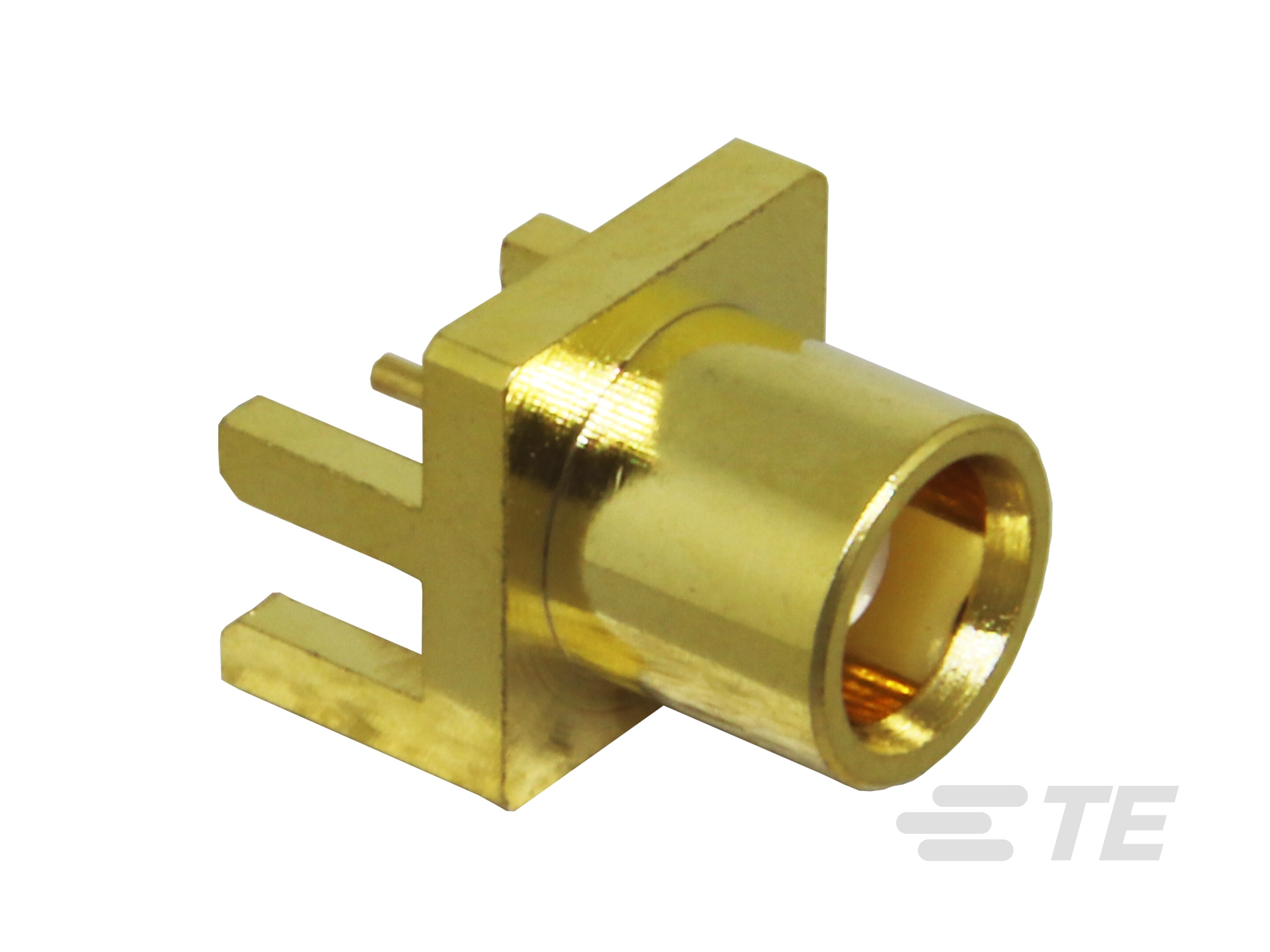

TE Connectivity AMP Connectors CONMCX003.062-L	Snap-On	Female Socket Recepture	MCX	Bulkhead Front Side Nut	Beryllium Copper	6000 MHz	Board Edge End Launch Panel Mount	50 Ohm	Solder	Gold	Solder	1	Gold	3 pcs	Connector Lockwasher Nut	Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.1 dB	500 cycles
TE Connectivity AMP Connectors CONMCX001	Snap-On	Female Socket Recepture	MCX		Beryllium Copper	6000 MHz	Through Hole	50 Ohm	Solder	Gold	Solder	1	Gold			Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.1 dB	500 cycles
TE Connectivity AMP Connectors CONMCX007	Snap-On	Male Pin Plug	MCX		Brass	6000 MHz	Free Hanging (In-Line)	50 Ohm	Solder	Silver	Crimp	1	Nickel	4 pcs	Connector Contact Ferrule Heat Shrink	Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.1 dB	500 cycles	RG-174
TE Connectivity AMP Connectors CONMCX012-R178	Snap-On	Male Pin Plug	MCX		Brass	6000 MHz	Free Hanging (In-Line) Right Angle	50 Ohm	Solder	Gold	Crimp	1	Gold	5 pcs	Connector End Cap Ferrule Heat Shrink Insulator	Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	500 cycles	RG-178	250 V
TE Connectivity AMP Connectors CONMCX002-SMD	Snap-On	Female Socket Recepture	MCX		Beryllium Copper	6000 MHz	Right Angle Surface Mount	50 Ohm	Solder	Gold	Solder	1	Gold			Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	500 cycles
TE Connectivity AMP Connectors CONMCX003.062	Snap-On	Female Socket Recepture	MCX		Beryllium Copper	6000 MHz	Board Edge End Launch	50 Ohm	Solder	Gold	Solder	1	Gold			Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.1 dB	500 cycles
TE Connectivity AMP Connectors CONMCX002	Snap-On	Female Socket Recepture	MCX		Beryllium Copper	6000 MHz	Right Angle Through Hole	50 Ohm	Solder	Gold	Solder	1	Gold			Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	500 cycles
TE Connectivity AMP Connectors CONMCX007-R178	Snap-On	Male Pin Plug	MCX		Brass	6000 MHz	Free Hanging (In-Line)	50 Ohm	Crimp Solder	Gold	Crimp	1	Gold	5 pcs	Connector Contact Heat Shrink Spacer Support	Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.1 dB	500 cycles	RG-178	250 V
TE Connectivity AMP Connectors CONMCX012	Snap-On	Male Pin Plug	MCX		Brass	6000 MHz	Free Hanging (In-Line) Right Angle	50 Ohm	Solder	Gold	Crimp	1	Gold	5 pcs	Connector End Cap Ferrule Heat Shrink Insulator	Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	500 cycles	RG-174
TE Connectivity AMP Connectors CONMCX011-R178	Snap-On	Female Socket Recepture	MCX		Beryllium Copper	6000 MHz	Free Hanging (In-Line)	50 Ohm	Solder	Gold	Crimp	1	Gold	5 pcs	Connector Contact Heat Shrink Spacer Support	Gold	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	0.1 dB	500 cycles	196 RG-178	250 V
