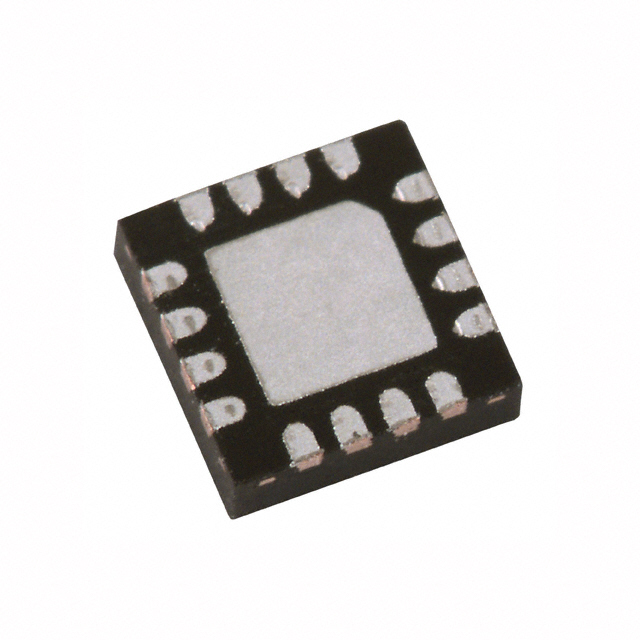

HMC1042L-TR
ObsoleteHoneywell Aerospace
SENSOR MR WHEAT BRDG 16LCC
HMC1042L-TR
ObsoleteHoneywell Aerospace
SENSOR MR WHEAT BRDG 16LCC
Description
General part information
HMC1042L-TR
Magnetoresistive Sensor X, Y Axis 16-LCC
Technical Specifications
Parameters and characteristics for this part
| Specification | HMC1042L-TR |
|---|---|
| Axis | X, Y |
| Bandwidth | 5 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Package / Case | 16-VQFN Exposed Pad |
| Package Name | 16-LCC |
| Sensing Range (Max) | 0.6 mT |
| Sensing Range (Min) | -0.6 mT |
| Technology | Magnetoresistive |
| Voltage - Supply (Maximum) | 20 V |
| Voltage - Supply (Minimum) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
