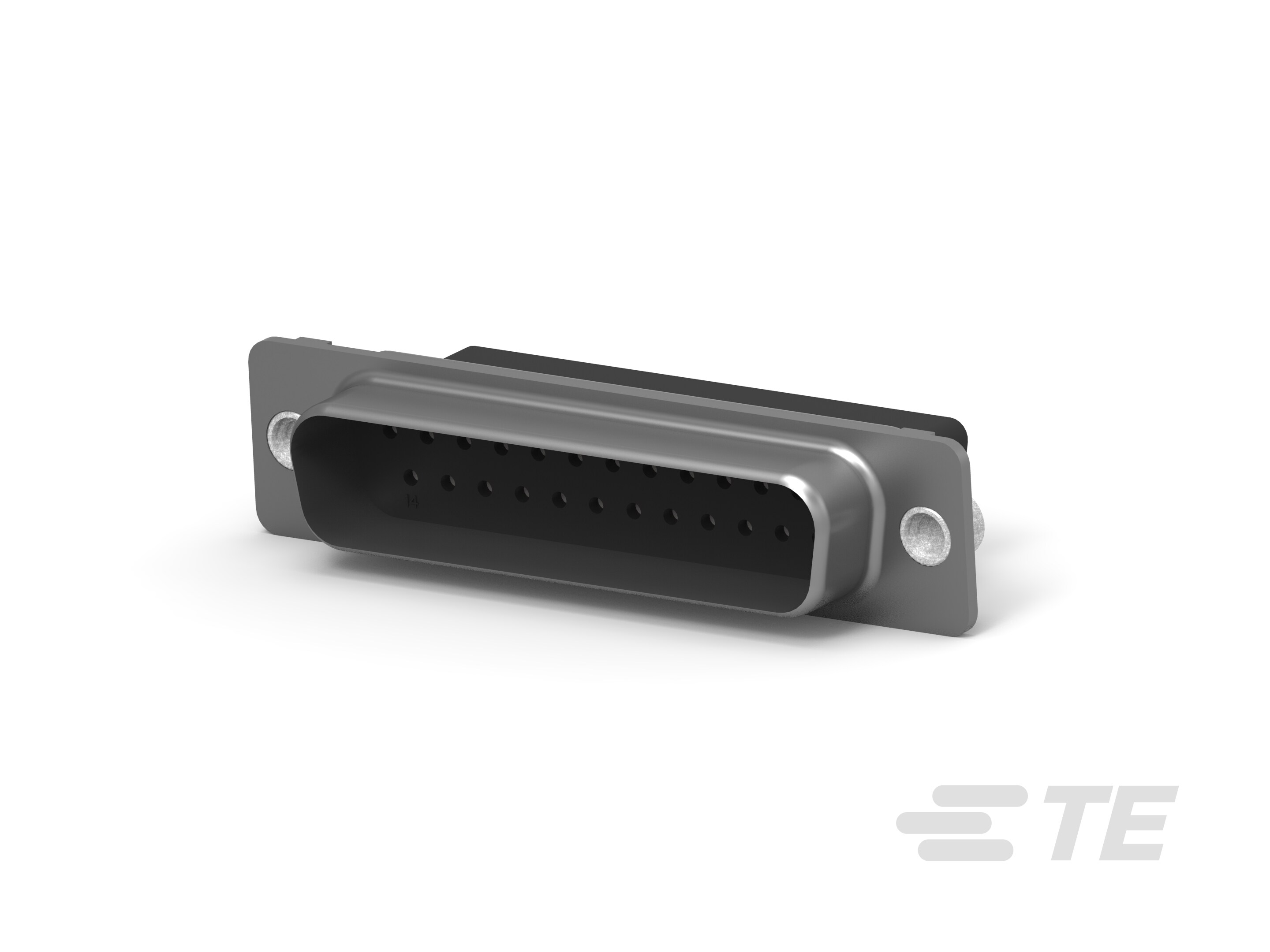

PLUG ASSY,25P,HDP-20,CN-5745036-2

5745036-2

Active
TE Connectivity AMP Connectors

CONN D-SUB HOUSING PLUG 25POS

Find alt
PLUG ASSY,25P,HDP-20,CN-5745036-2

5745036-2

Active
TE Connectivity AMP Connectors

CONN D-SUB HOUSING PLUG 25POS

Find alt

Description

General part information

5745036-2

25 Position D-Shaped Connector, Plug, Cable-to-Cable, Panel Mount, 3 Shell Size, 2.74 mm / 2.77 mm / 2.79 mm [.108 in / .109 in / .11 in] Centerline

Technical Specifications

Parameters and characteristics for this part

Specification5745036-2
Connector LayoutDB, B
Connector StyleD-Sub
Connector TypePlug for Male Contacts
Contact TypeSignal
FeaturesGrounding Indents
FinishTin Plated
Flange FeatureCable Side (4-40)
Mounting TypeFree Hanging (In-Line)
Number of Positions25
Number of Rows2
Shell Finish Thickness200 µin
Shell MaterialSteel
Shell Size3
