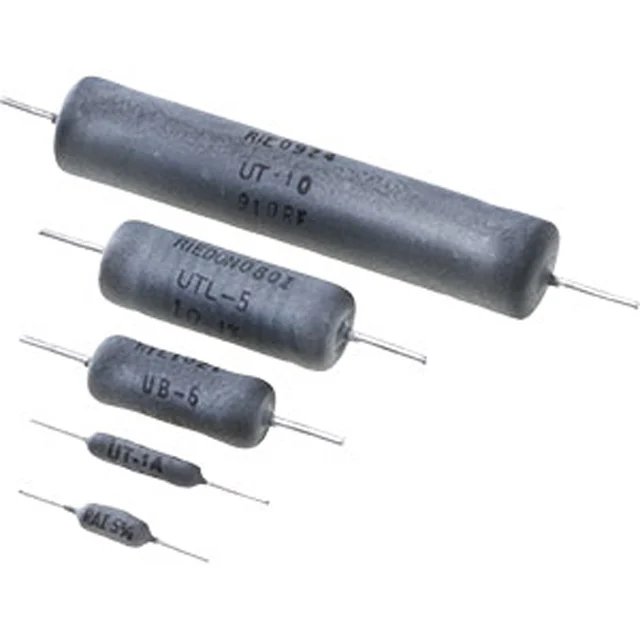

UT10-5RC1
ActiveBourns Inc.
UT-10 5 OHM 0.25% TRAV
UT10-5RC1
ActiveBourns Inc.
UT-10 5 OHM 0.25% TRAV
Description
General part information
UT10-5RC1
UT-10 5 OHM 0.25% TRAV
Technical Specifications
Parameters and characteristics for this part
| Specification | UT10-5RC1 |
|---|---|
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 10 W |
| Resistance | 5 Ohm |
| Size / Dimension Diameter | 0.374 in |
| Size / Dimension Length | 1.78 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 0.25 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
