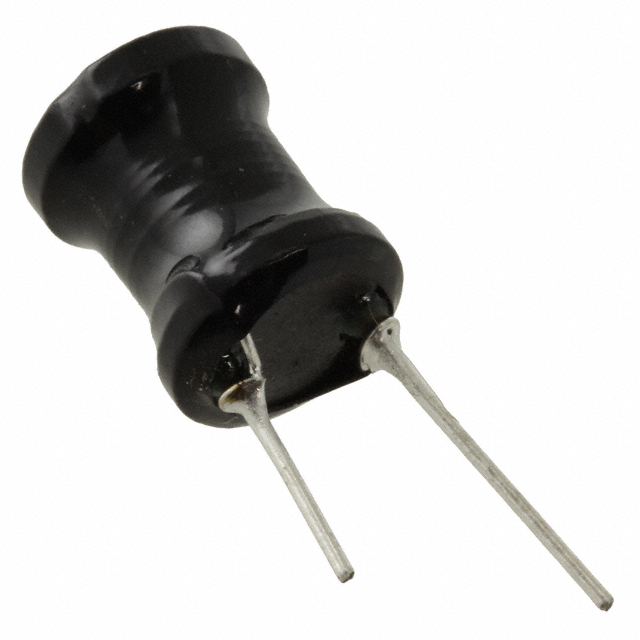

AIUR-06-472K
ActiveAbracon LLC
FIXED IND 4.7MH 280MA 5.6 OHM TH
AIUR-06-472K
ActiveAbracon LLC
FIXED IND 4.7MH 280MA 5.6 OHM TH
Description
General part information
AIUR-06-472K
4.7 mH Unshielded Drum Core, Wirewound Inductor 280 mA 5.6Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | AIUR-06-472K |
|---|---|
| Current - Saturation (Isat) | 0.4 mA |
| Current Rating | 0.28 A |
| DC Resistance (DCR) (Max) | 5.6 Ohm |
| Height - Seated (Max) | 0.71 in |
| Inductance | 4.7 mH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Vertical Cylinder, Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.5 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
