MP201802
ActiveZF Electronics
SENSOR REED SW SPST-NC W LEADS
MP201802
ActiveZF Electronics
SENSOR REED SW SPST-NC W LEADS
Description
General part information
MP201802

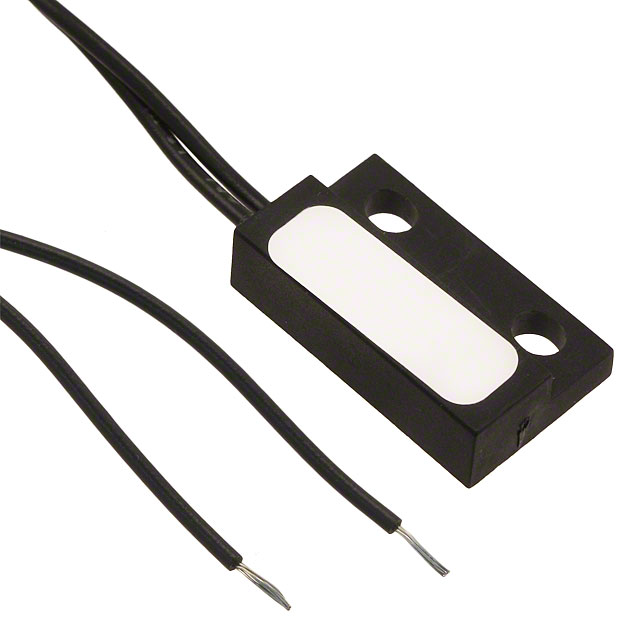

Magnetic Reed Switch Magnet SPST-NC Wire Leads Rectangular, Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | MP201802 |
|---|---|
| Actuator Material | Magnet |
| Must Operate (Length) | 6.35 mm |
| Must Release | 17.8 mm |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | SPST-NC |
| Package / Case | Wire Leads, Rectangular |
| Termination Style | Wire Leads |
| Type | Reed Switch |
