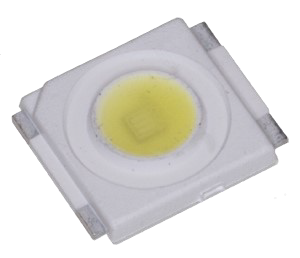

0.5-WATT WHITE LED, 3.7 X 3.7MM, 120°, AEC-Q101

Find alt
OVS5WBCR4A

OVS5WBCR4A

Active
TT Electronics/BI

0.5-WATT WHITE LED, 3.7 X 3.7MM, 120°, AEC-Q101

Find alt

Description

General part information

OVS5WBCR4A

0.5-WATT WHITE LED, 3.7 X 3.7MM, 120°, AEC-Q101

Technical Specifications

Parameters and characteristics for this part

SpecificationOVS5WBCR4A
ColorWhite
Current - Max200 mA
Current - Test150 mA
Flux (Maximum)59 lm
Flux (Minimum)31 lm
Flux (Nominal)45 lm
Height - Seated (Max)0.035 in
Lumens/Watt92 lm/W
Mounting TypeSurface Mount
Package / CaseNo Lead, 2-SMD
Package Name2-SMD
Size / Dimension Length0.146 in
Size / Dimension Width0.138 in
Viewing Angle120 °
Voltage - Forward (Vf) (Typ)3.25 V
