ETHERNET CABLES / NETWORKING CABLES M12D4-MS-RJ-PUR-22SH-TYPE C GREEN-7.0M

Find alt

Alpha

TCD14745101-006

Active

TE Connectivity AMP Connectors

ETHERNET CABLES / NETWORKING CABLES M12D4-MS-RJ-PUR-22SH-TYPE C GREEN-7.0M

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

M12 D-Code Series

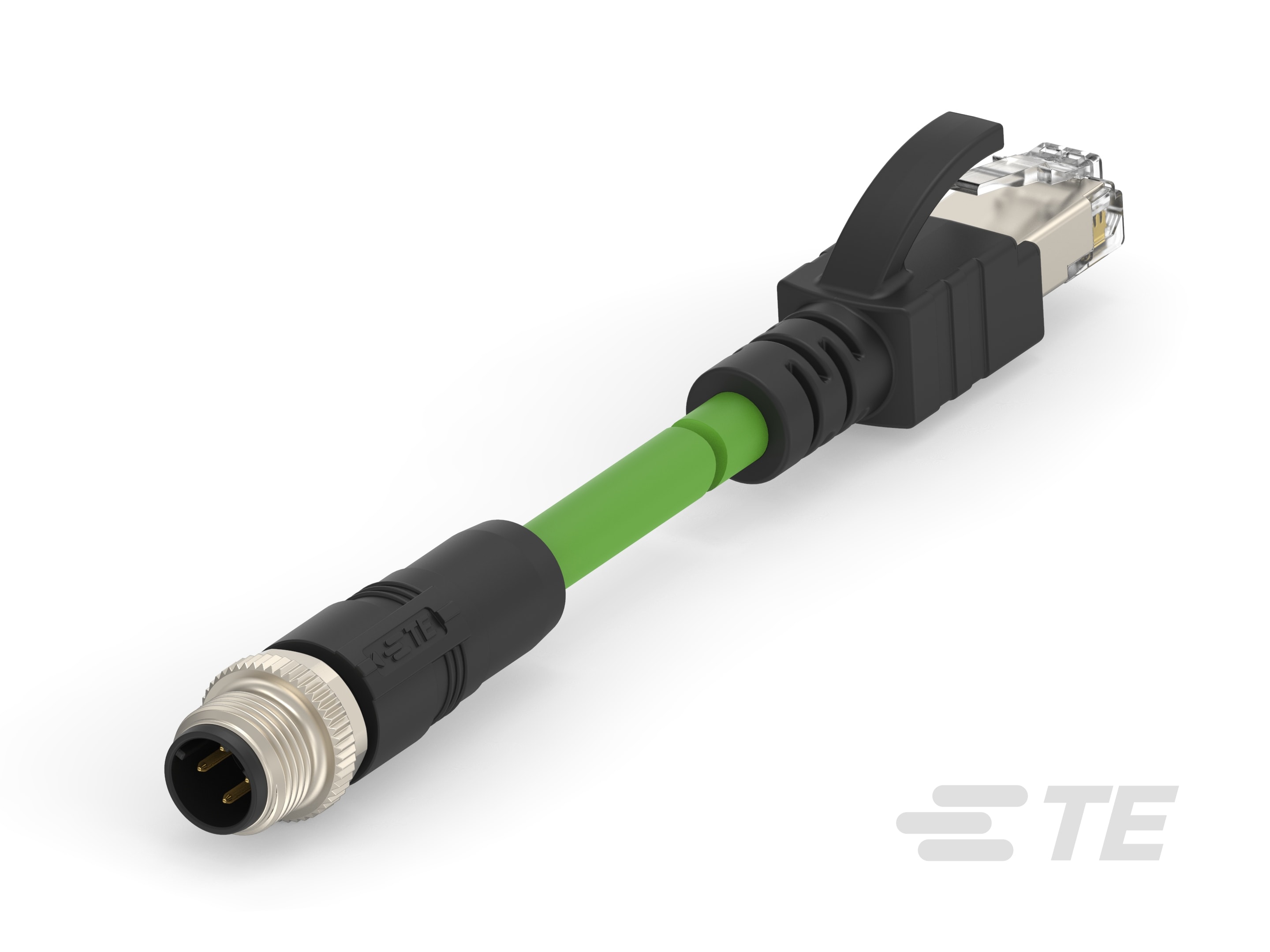

M12 to RJ45 Cable Assembly, 4 Position, 7 m, Industrial Ethernet, Ethernet, D Code, M12 Plug End A, RJ45 Plug End B, Shielded, Double Ended, PA66+25GF

Technical Specifications

Parameters and characteristics for this part

Specification	TCD14745101-006

Cable Type	Round
Color	Green
Connector Pin Count	4 pos
Connector Type	8p4c, Circular Male to RJ45
Length	22.97 ft
Shielding	Shielded

M12 D-Code Series

Part	1st Connector Shell Size - Insert	1st Connector Gender	Usage	1st Connector Type	Cable Material	1st Connector Number of Positions	Cable Type	1st Connector Mounting Type	2nd Connector Type	1st Connector Number of Positions Loaded	Shielding	1st Connector Orientation	Assembly Configuration	Ingress Protection Description	Ingress Protection IP Rating	Length	Color	2nd Connector Gender	2nd Connector Shell Size - Insert (Code)	2nd Connector Orientation	2nd Connector Number of Positions Loaded	2nd Connector Number of Positions	2nd Connector Mounting Type	Connector Pin Count	Connector Type
TE Connectivity AMP Connectors TAD1423A201-001	M12	Male Pins	Cat5e Industrial Environments	Plug Right Angle	Thermoplastic Elastomer (TPE)	4 positions	Round	Free Hanging (In-Line)	Wire Leads	All	Shielded	D	Standard	Dust Tight Waterproof	IP67	1.64 ft	Teal
TE Connectivity AMP Connectors TAD2423A201-250	M12	Male Pins	Cat5e Industrial Environments	Plug Right Angle	Thermoplastic Elastomer (TPE)	4 positions	Round	Free Hanging (In-Line)	Wire Leads	All	Unshielded	D	Standard	Dust Tight Waterproof	IP67	82 ft	Teal
TE Connectivity AMP Connectors TAD2423A201-001	M12	Male Pins	Cat5e Industrial Environments	Plug Right Angle	Thermoplastic Elastomer (TPE)	4 positions	Round	Free Hanging (In-Line)	Wire Leads	All	Unshielded	D	Standard	Dust Tight Waterproof	IP67	1.64 ft	Teal
TE Connectivity AMP Connectors TAD14545101-020	M12	Male Pins	Cat5e Industrial Environments	Receptacle	Polyurethane (PUR)	4 positions	Round	Free Hanging (In-Line)	Plug	All	Shielded	D	Standard	Dust Tight Waterproof	IP67	6.56 ft	Green	Female Sockets	M12	D	All	4	Free Hanging (In-Line)
TE Connectivity AMP Connectors TAD2453A201-001	M12	Male Pins	Cat5e Industrial Environments	Receptacle	Thermoplastic Elastomer (TPE)	4 positions	Round	Free Hanging (In-Line)	Plug	All	Unshielded	D	Standard	Dust Tight Waterproof	IP67	1.64 ft	Teal	Female Sockets	M12	D	All	4	Free Hanging (In-Line)
TE Connectivity AMP Connectors TAD1473A201-002	M12	Male Pins	Cat5e Industrial Environments	Plug	Thermoplastic Elastomer (TPE)	4 positions	Round	Free Hanging (In-Line)	Plug	All	Shielded	D	Standard	Dust Tight Waterproof	IP67	3.28 ft	Teal	Male Pins	M12	D	All	4	Free Hanging (In-Line)
TE Connectivity AMP Connectors TAD14545101-002	M12	Male Pins	Cat5e Industrial Environments	Receptacle	Polyurethane (PUR)	4 positions	Round	Free Hanging (In-Line)	Plug	All	Shielded	D	Standard	Dust Tight Waterproof	IP67	3.28 ft	Green	Female Sockets	M12	D	All	4	Free Hanging (In-Line)
TE Connectivity AMP Connectors TCD14741111-020							Round				Shielded					6.56 ft	Green							4 pos	8p4c Circular Male to RJ45
TE Connectivity AMP Connectors TAD2423A201-005	M12	Male Pins	Cat5e Industrial Environments	Plug Right Angle	Thermoplastic Elastomer (TPE)	4 positions	Round	Free Hanging (In-Line)	Wire Leads	All	Unshielded	D	Standard	Dust Tight Waterproof	IP67	16.4 ft	Teal
TE Connectivity AMP Connectors TAD14541111-007	M12	Male Pins	Cat5e Industrial Environments	Receptacle	Polyvinyl Chloride (PVC)	4 positions	Round	Free Hanging (In-Line)	Plug	All	Shielded	D	Standard	Dust Tight Waterproof	IP67	32.8 ft	Green	Female Sockets	M12	D	All	4	Free Hanging (In-Line)
