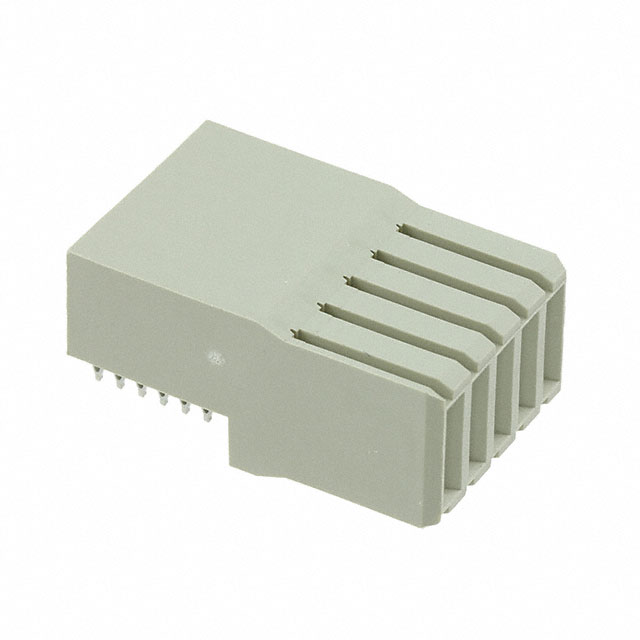

120943-3
ActiveTE Connectivity AMP Connectors
CONN RCPT BLADE PWR 5POS EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
120943-3
ActiveTE Connectivity AMP Connectors
CONN RCPT BLADE PWR 5POS EDGE MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 120943-3 | 120943 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Style | Blade Power | Blade Power |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 50 µin |
| Contact Finish Thickness | 1.27 µm | 1.27 µm |
| Contact Layout, Typical | 5 Power | 8 Power, 5 Power |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | - | 8 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 °C |
| Operating Temperature [Min] | -40 °C | -55 - -40 °C |
| Termination | Press-Fit | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.19 | |
| 10 | $ 8.45 | |||
| 31 | $ 7.70 | |||
| 62 | $ 7.28 | |||
| 124 | $ 6.88 | |||
| 279 | $ 6.44 | |||
| 527 | $ 6.12 | |||
| 1023 | $ 5.80 | |||
120943 Series
CONN RCPT BLADE PWR 8POS EDGE MT
| Part | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Number of Rows | Mounting Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Connector Usage | Connector Style | Color | Material Flammability Rating | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 120943-6 | Gold | 8 | 50 µin | 1.27 µm | All | 1 | Board Edge, Right Angle, Through Hole | Press-Fit | -55 °C | 125 °C | Receptacle, Female Blade Sockets | Backplane | Blade Power | Gray | UL94 V-0 | 8 Power |
TE Connectivity AMP Connectors 120943-3 | Gold | 50 µin | 1.27 µm | All | 1 | Board Edge, Right Angle, Through Hole | Press-Fit | -40 °C | 105 ░C | Receptacle, Female Blade Sockets | Backplane | Blade Power | Gray | UL94 V-0 | 5 Power |
Description
General part information
120943 Series
5 Connector Receptacle, Female Blade Sockets Board Edge, Through Hole, Right Angle Gray Blade Power
