Description
General part information

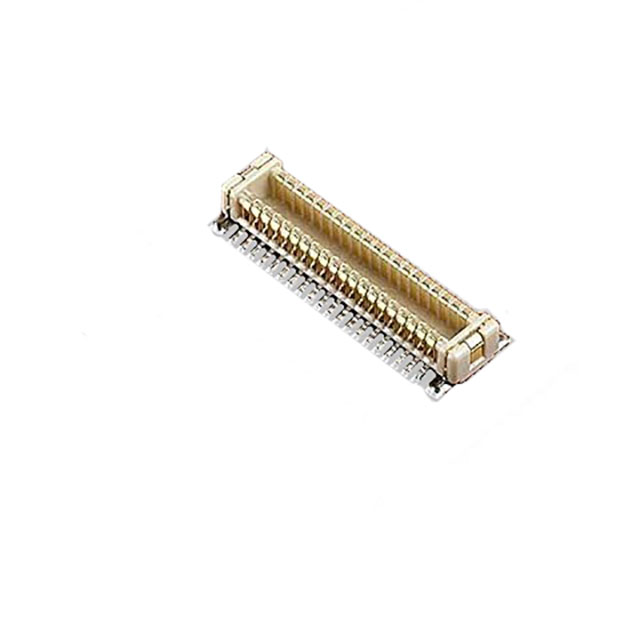

20842-030E-21
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 20842-030E-21 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94 µin |
| Features | Solder Retention |
| Height Above Board | 0.048 in |
| Mated Stacking Height | 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch | 0.014 in |
