RJD3032
ActiveCornell Dubilier Knowles
BATT LITH-ION 3.7V 200MAH COIN
RJD3032
ActiveCornell Dubilier Knowles
BATT LITH-ION 3.7V 200MAH COIN
Description
General part information
RJD3032

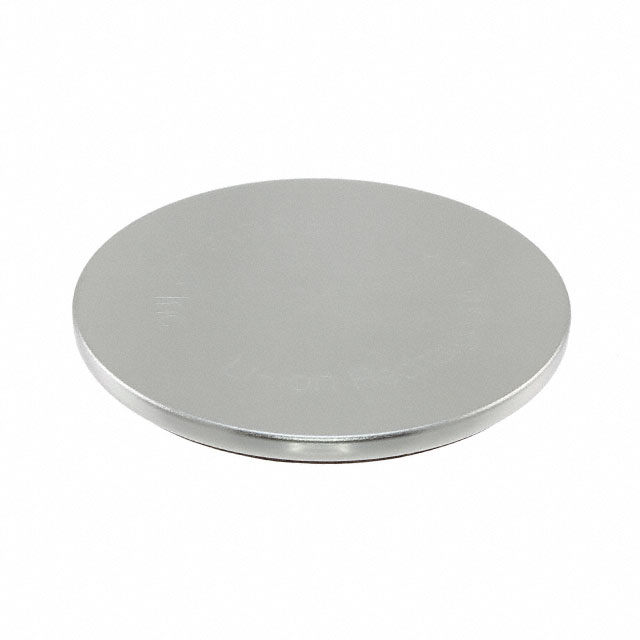

Coin, 30.0mm 3.7 V Lithium-Ion Battery Rechargeable (Secondary) 200mAh
Technical Specifications
Parameters and characteristics for this part
| Specification | RJD3032 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 30 mm |
| Battery Chemistry | Lithium-Ion |
| Capacity (Charge) | 200 mAh |
| Discharge Rate (Current) | 40 mA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 1.18 in |
| Size / Dimension Height | 0.13 in |
| Standard Charge Current | 100 mA |
| Termination Style | Requires Holder |
| Voltage - Rated | 3.7 V |
| Weight | 7.2 g |
