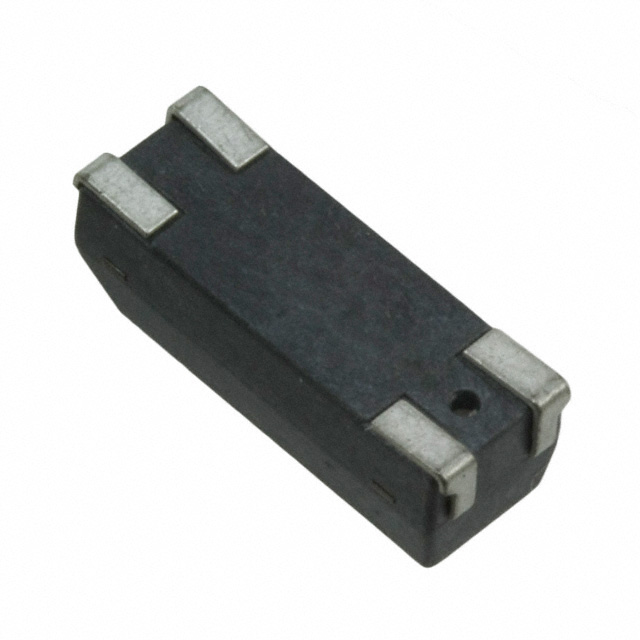

Specification	CM309A32.000MABJT

ESR (Equivalent Series Resistance)	100 Ohm
Frequency	32 MHz
Frequency Stability	50 ppm
Frequency Tolerance	30 ppm
Height - Seated (Max)	0.181 in
Load Capacitance	18 pF
Mounting Type	Surface Mount
Operating Mode	3rd Overtone
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-10 °C
Package / Case	2.85mm pitch, 2-SOJ
Package Diameter	2.85 mm
Package Name	4-SOJ
Package Pitch	2.85 mm
Size / Dimension Length	0.528 in
Size / Dimension Width	0.2 in
Type	MHz Crystal
