MAL209020682E3
UnknownVishay Dale

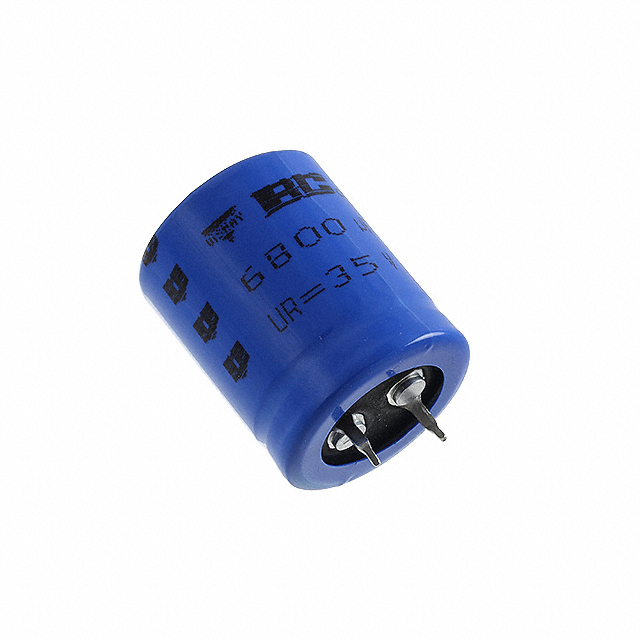

CAP ALUM 6800UF 20% 35V SNAP TH
MAL209020682E3
UnknownVishay Dale
CAP ALUM 6800UF 20% 35V SNAP TH
Description
General part information
MAL209020682E3
6800 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 70mOhm @ 100Hz 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL209020682E3 |
|---|---|
| Applications | Audio |
| Capacitance | 6800 µF |
| ESR (Equivalent Series Resistance) | 70 mOhm |
| Height - Seated (Max) | 1.26 in |
| Impedance | 50 mOhm |
| Lead Spacing | 0.394 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 3 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
