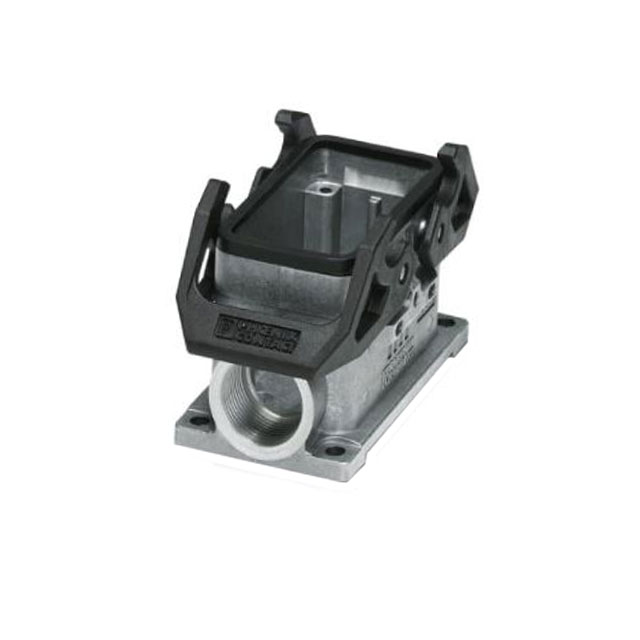

Specification	1412835

Connector Type	Base - Box Mount
Features	Feed Through, Salt Water Resistant
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP66, IP67, IP69K
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	B10
Size / Dimension Height	2.126 in
Size / Dimension Length	3.661 in
Size / Dimension Width	2.047 in
Style	Side Entry
Thread Size	M20
