Description
General part information

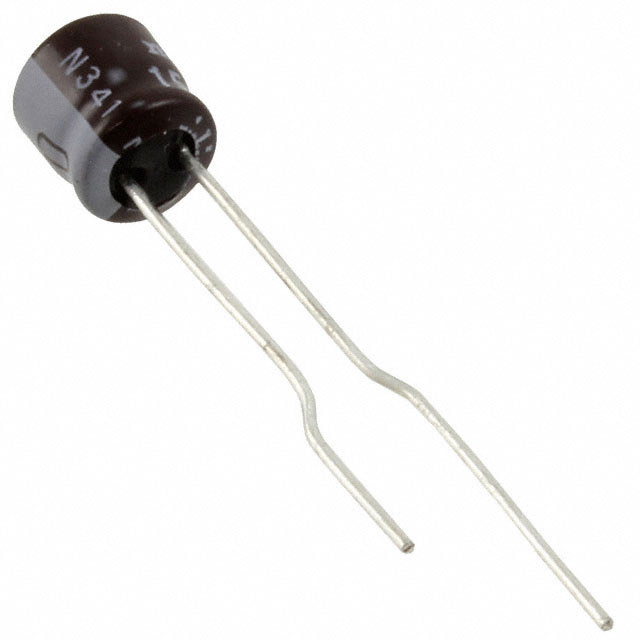

UMF0J470MDD
47 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UMF0J470MDD |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| Height - Seated (Max) | 0.236 in |
| Impedance | 2.6 Ohms |
| Lead Spacing | 0.079 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 40 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
