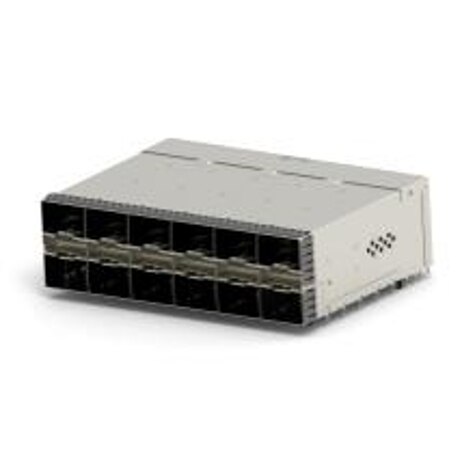

3-2347721-1
ActiveTE Connectivity AMP Connectors
I/O CONNECTORS SFP56 STACKED 2X6 RECEPTACLE ASSEMBLY
3-2347721-1
ActiveTE Connectivity AMP Connectors
I/O CONNECTORS SFP56 STACKED 2X6 RECEPTACLE ASSEMBLY
Description
General part information
3-2347721-1
zSFP+ Stacked (SFP56), Cage Assembly with Integrated Connector, .6mm [.018in] Centerline, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2347721-1 |
|---|---|
| Connector Pin Configuration (Columns) | 6 pins |
| Connector Pin Configuration (Rows) | 2 pins |
| Connector Style | Ganged, Receptacle with Cage |
| Connector Type | zSFP+ |
| Features | Board Guide, EMI Shielded |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 20 |
| Number of Positions (Rows) | 12 |
| Number of Positions (Total) | 240 |
| Termination | Press-Fit |
