193-5MSN
ActiveCTS Electrocomponents
SWITCH PIANO DIP SPST 0.05A 24V
193-5MSN
ActiveCTS Electrocomponents
SWITCH PIANO DIP SPST 0.05A 24V
Description
General part information
193-5MSN

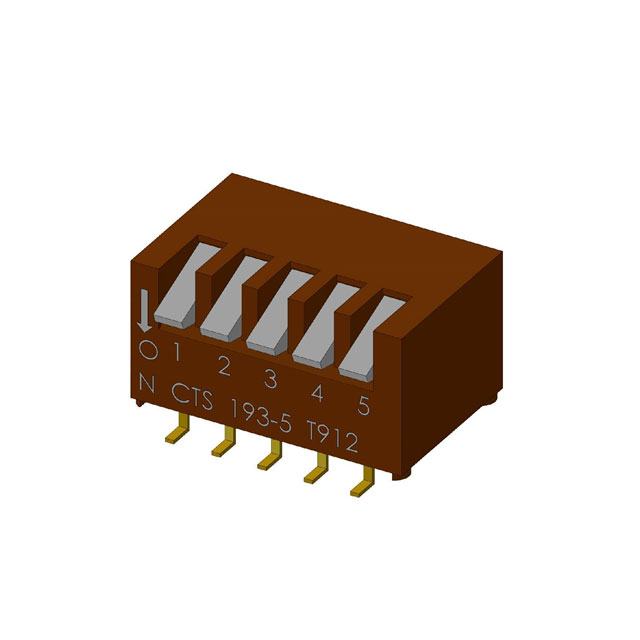

Dip Switch SPST 5 Position Surface Mount, Right Angle Piano Actuator 50mA 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 193-5MSN |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Piano |
| Body Material | Plastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 7000 |
| Features | Epoxy Sealed Terminals |
| Height Above Board | 0.359 in |
| Length | 0.586 in |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | Gull Wing |
| Voltage Rating | 24 V |
| Washable | No |
