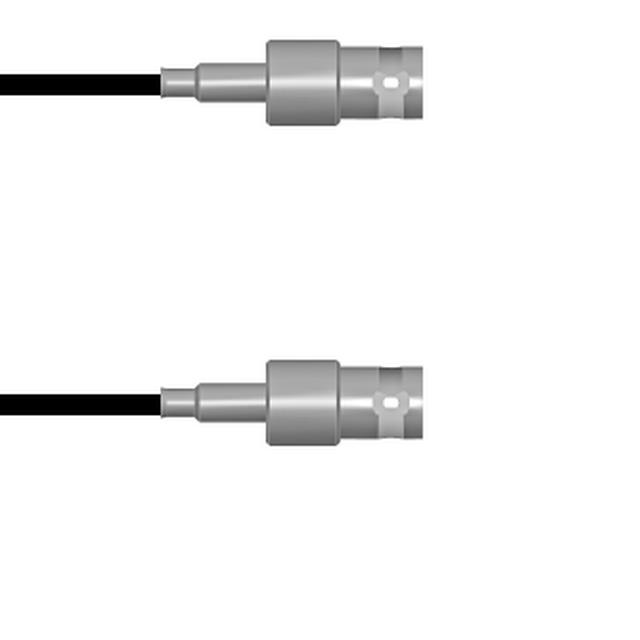

Specification	Q-030030003003M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG, 174
Color	Black
Features	Shielded
Frequency - Max	4 GHz
Length	118.1 in
Overall Impedance	50 Ohms
Style	BNC

Q-030030 Series

Part	Cable Type	Color	Frequency - Max	Length	1st Contact Gender	2nd Connector	2nd Contact Gender	2nd Connector Mounting Type	Overall Impedance	1st Connector	1st Connector Mounting Type	Features	Style	Length (ft)
McGill Microwave Systems Q-030030003072i	174 RG	Black	4 GHz	72 in	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC
McGill Microwave Systems Q-0300300031.5M	174 RG	Black	4 GHz	59.1 in	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC	4.9 ft
McGill Microwave Systems Q-0300300032.5M	174 RG	Black	4 GHz	98.4 in	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC	8.2 ft

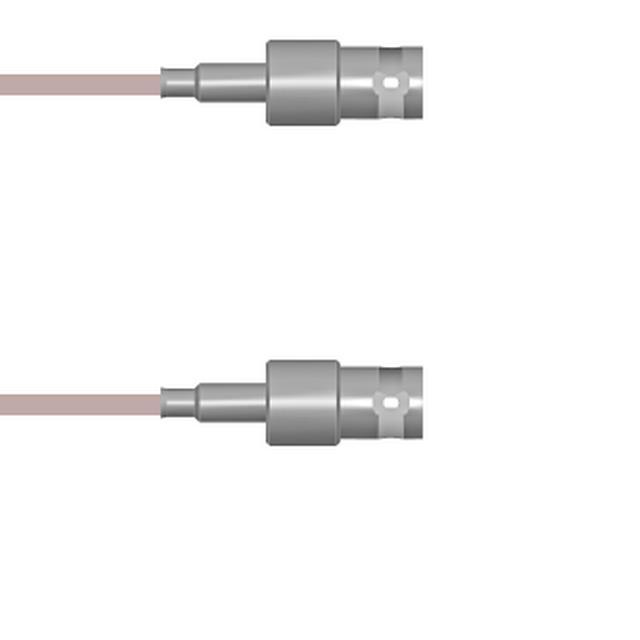

McGill Microwave Systems Q-030030005.25M	316 RG	Copper	4 GHz	9.843 in	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC
McGill Microwave Systems Q-030030005048i	316 RG	Copper	4 GHz	48 in	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC
McGill Microwave Systems Q-030030005009i	316 RG	Copper	4 GHz	228.6 mm	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC
McGill Microwave Systems Q-030030003006i	174 RG	Black	4 GHz	0.5 ft	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC
McGill Microwave Systems Q-030030003060i	174 RG	Black	4 GHz	1524 mm	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC	5 ft
McGill Microwave Systems Q-030030005001M	316 RG	Copper	4 GHz	39.4 in	Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC
McGill Microwave Systems Q-030030005002M	316 RG	Copper	4 GHz		Female	BNC Jack	Female	Free Hanging (In-Line)	50 Ohms	BNC Jack	Free Hanging (In-Line)	Shielded	BNC	6.6 ft
