LCCA30798/RD-FT1
ActivePasternack
BNC M TO HD BNC M USING RED BELD
LCCA30798/RD-FT1
ActivePasternack
BNC M TO HD BNC M USING RED BELD
Description
General part information
LCCA30798/RD-FT1

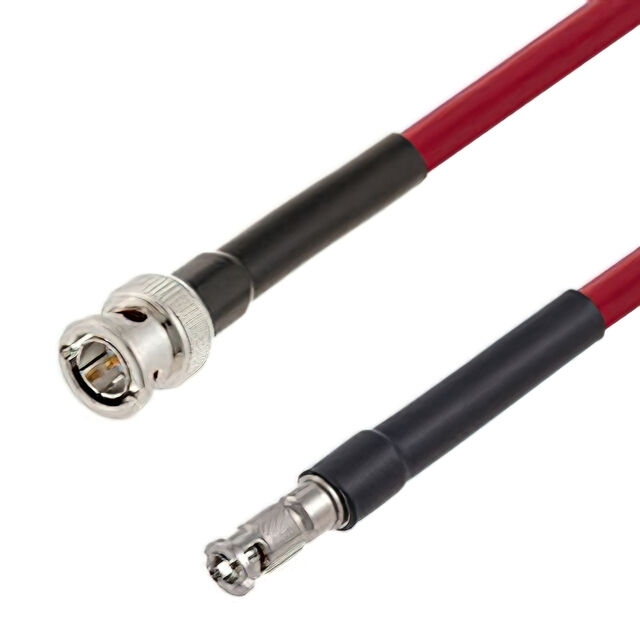

Cable Assembly Coaxial BNC to HD-BNC Belden 1694A 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30798/RD-FT1 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 1694A |
| Color | Red |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 12 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 75 Ohms |
| Style | BNC, HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
