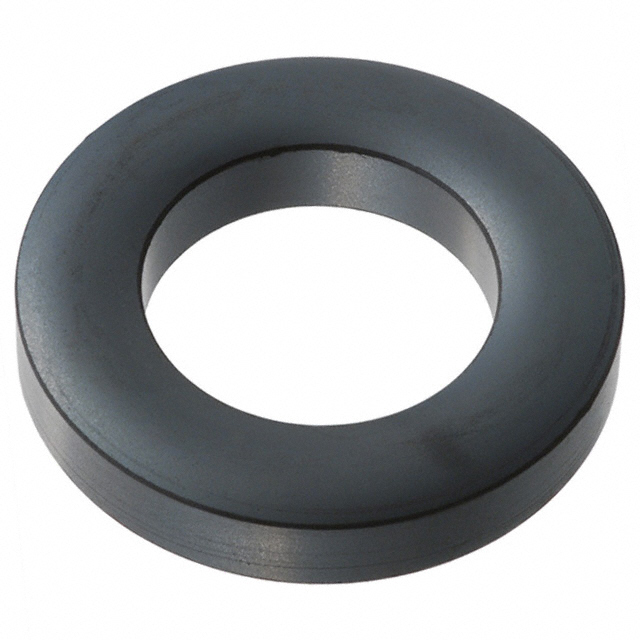

28B2400-000
ActiveLaird Technologies EMI
FERRITE CORE 135 OHM SOLID
28B2400-000
ActiveLaird Technologies EMI
FERRITE CORE 135 OHM SOLID
Description
General part information
28B2400-000
Solid Free Hanging Ferrite Core 135Ohm @ 100MHz ID 1.400" Dia (35.56mm) OD 2.400" Dia (60.96mm) Length 0.500" (12.70mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28B2400-000 |
|---|---|
| Design | Solid |
| Impedance | 135 Ohm |
| Inner Dimension (Diameter) | 1.4 in |
| Length | 0.5 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 2.4 in |
| Type | Round |
