CFD69716P-B30D43F
ActiveTE Connectivity AMP Connectors
OMNI,DBAND,30CM,D43F
CFD69716P-B30D43F
ActiveTE Connectivity AMP Connectors
OMNI,DBAND,30CM,D43F
Description
General part information
CFD69716P-B30D43F

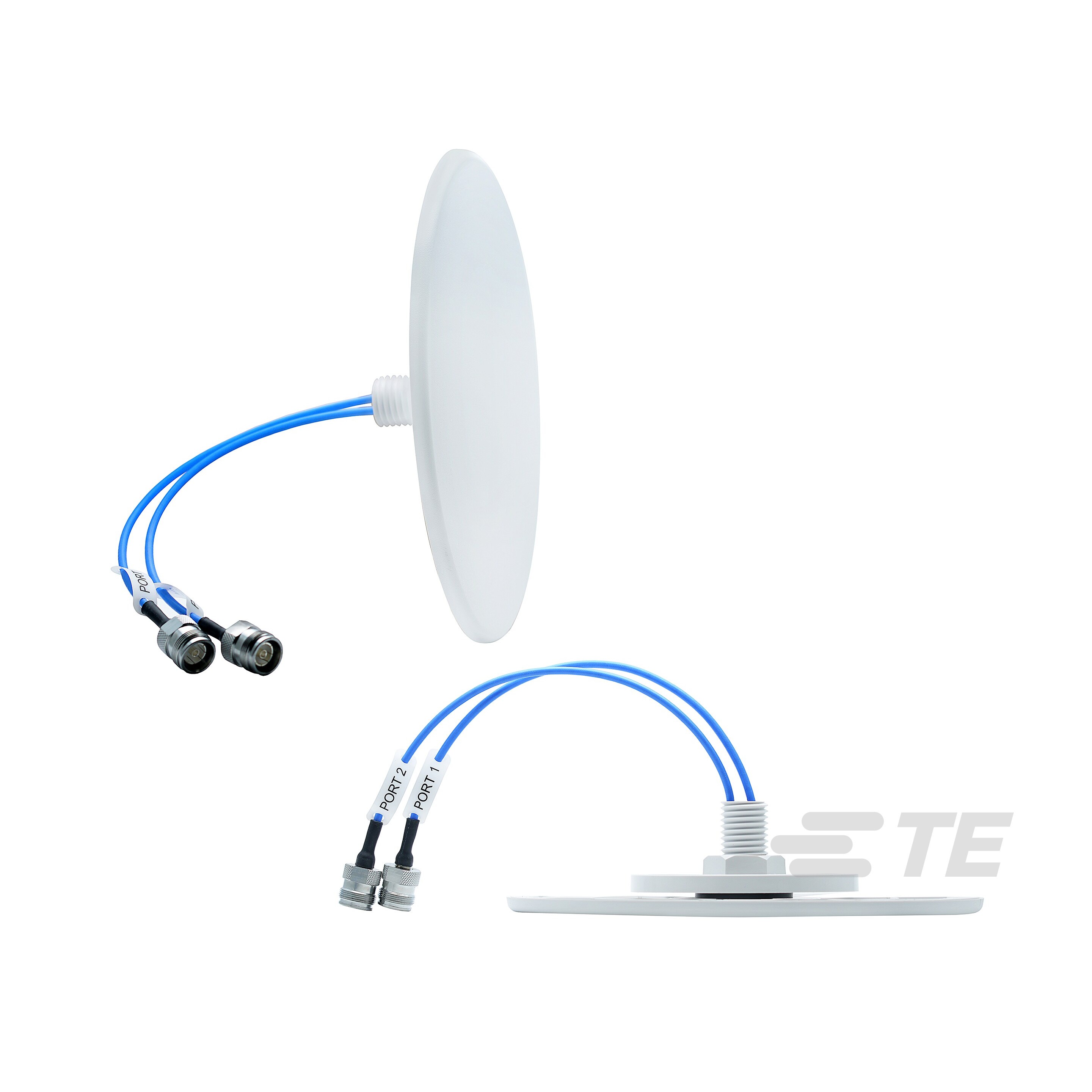

Dome/Puck Antenna, Multi Band, 5G / CBRS / Cat-M/NB-IoT, External Mount, Wall/Ceiling Mount, 4.3-10, Omnidirectional, Multiple Ports, CFD Series
Technical Specifications
Parameters and characteristics for this part
| Specification | CFD69716P-B30D43F |
|---|---|
| Antenna Type | Module |
| Applications | 5G |
| Features | Cable, 300mm |
| Frequency (Center/Band) | 920MHz, 4GHz, 2.5GHz, 1.92GHz, 1.45GHz, 761MHz, 6.525GHz, 2.045GHz, 3.55GHz, 1.785GHz, 859MHz, 5.5375GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 824 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 10) Maximum | 4.2 GHz |
| Frequency Range (Band 10) Minimum | 3.8 GHz |
| Frequency Range (Band 11) Maximum | 5.925 GHz |
| Frequency Range (Band 11) Minimum | 5.15 GHz |
| Frequency Range (Band 12) Maximum | 7.125 GHz |
| Frequency Range (Band 12) Minimum | 5.925 GHz |
| Frequency Range (Band 2) Maximum | 894 MHz |
| Frequency Range (Band 2) Minimum | 824 MHz |
| Frequency Range (Band 3) Maximum | 960 MHz |
| Frequency Range (Band 3) Minimum | 880 MHz |
| Frequency Range (Band 4) Maximum | 1.55 GHz |
| Frequency Range (Band 4) Minimum | 1.35 GHz |
| Frequency Range (Band 5) Maximum | 1.88 GHz |
| Frequency Range (Band 5) Minimum | 1.69 GHz |
| Frequency Range (Band 6) Maximum | 1.99 GHz |
| Frequency Range (Band 6) Minimum | 1.85 GHz |
| Frequency Range (Band 7) Maximum | 2.18 GHz |
| Frequency Range (Band 7) Minimum | 1.91 GHz |
| Frequency Range (Band 8) Maximum | 2.7 GHz |
| Frequency Range (Band 8) Minimum | 2.3 GHz |
| Frequency Range (Band 9) Maximum | 3.8 GHz |
| Frequency Range (Band 9) Minimum | 3.3 GHz |
| Gain | 4.3 dBi, 2.8 dBi, 5.6 dBi, 3.4 dBi, 3.3 dBi, 2.7 dBi, 3.8 dBi, 5.7 dBi, 5.3 dBi, 5.4 dBi, 5.5 dBi |
| Height (Max) | 0.299 in |
| Mounting Type | Ceiling Mount |
| Number of Bands | 12 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination Gender | Female |
| Termination Pin Count | 10 pins |
| Termination Pitch | 4.3 mm |
| VSWR | 1.7, 2.3 |
| VSWR Maximum | 2.3 |
| VSWR Minimum | 1.7 |
