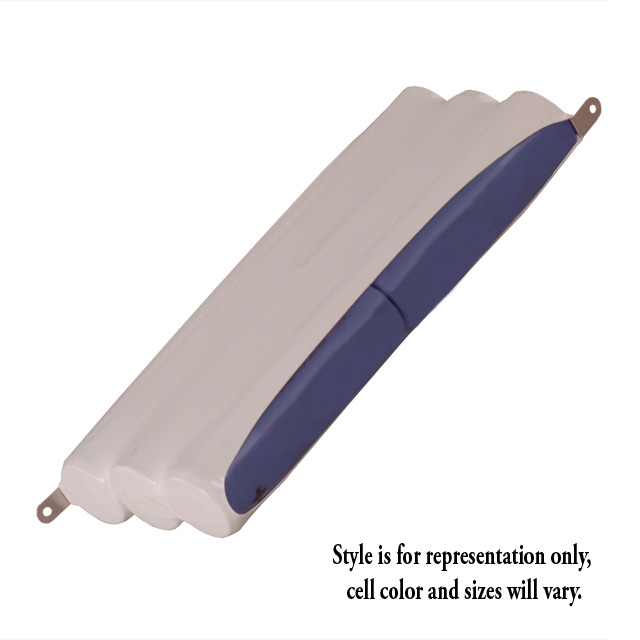

AM2XL2X3
ObsoletePanasonic Energy
BATTERY PACK ALKALINE 9V C
AM2XL2X3
ObsoletePanasonic Energy
BATTERY PACK ALKALINE 9V C
Description
General part information
AM2XL2X3
C 9 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | AM2XL2X3 |
|---|---|
| Battery Cell Size | C |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Number of Cells | 6 |
| Rechargeability | No |
| Size / Dimension Height | 3.94 in |
| Size / Dimension Length | 3.09 in |
| Size / Dimension Width | 1.03 in |
| Structure | Front to Back |
| Structure Cells | 2 |
| Structure Rows | 3 |
| Termination Style | Solder Tab |
| Voltage - Rated | 9 VAC |
| Weight | 419.57 g |
