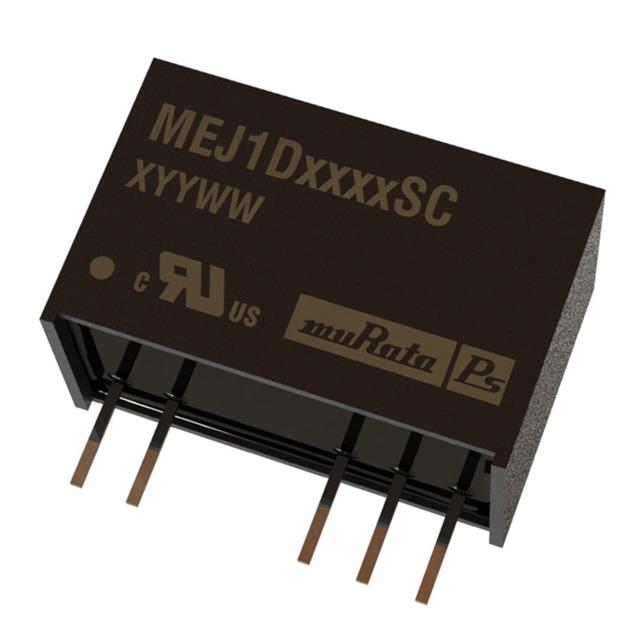

MEJ1D1215SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MEJ1D1215SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MEJ1D1215SC | MEJ1D12 Series |
|---|---|---|
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) | 33 mA | 33 - 151 mA |
| Current - Output (Max) | - | 100 mA |
| Efficiency | 77 % | 73 - 77 % |
| Features | SCP | SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.7 mm | 19.7 mm |
| Size / Dimension [x] | 0.77 in | 0.77 in |
| Size / Dimension [y] | 0.39 " | 0.39 " |
| Size / Dimension [y] | 10 mm | 10 mm |
| Size / Dimension [z] | 12.7 mm | 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V | 10.8 V |
| Voltage - Isolation | 5.2 kV | 5.2 kV |
| Voltage - Output 1 | 15 V | 3.3 - 15 V |
| Voltage - Output 2 | -15 V | -15 - -3.3 V |
MEJ1D12 Series
DC DC CONVERTER +/-3.3V 1W
| Part | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Type | Voltage - Output 2 | Current - Output (Max) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Number of Outputs | Features | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MEJ1D1203SC | 73 % | 0.39 " | 19.7 mm | 12.7 mm | 0.5 in | 0.77 in | 10 mm | 7-SIP Module, 5 Leads | Isolated Module | -3.3 V | 151 mA | ITE (Commercial), Medical | 85 °C | -40 °C | 3.3 V | 10.8 V | Through Hole | 5.2 kV | 13.2 V | 2 | SCP | |
Murata Power Solutions Inc. MEJ1D1209SC | 73 % | 0.39 " | 19.7 mm | 12.7 mm | 0.5 in | 0.77 in | 10 mm | 7-SIP Module, 5 Leads | Isolated Module | -9 V | 55 mA | ITE (Commercial), Medical | 85 °C | -40 °C | 9 V | 10.8 V | Through Hole | 5.2 kV | 13.2 V | 2 | SCP | |
Murata Power Solutions Inc. MEJ1D1215SC | 77 % | 0.39 " | 19.7 mm | 12.7 mm | 0.5 in | 0.77 in | 10 mm | 7-SIP Module, 5 Leads | Isolated Module | -15 V | 33 mA | ITE (Commercial), Medical | 85 °C | -40 °C | 15 V | 10.8 V | Through Hole | 5.2 kV | 13.2 V | 2 | SCP | |
Murata Power Solutions Inc. MEJ1D1205SC | 75.5 % | 0.39 " | 19.7 mm | 12.7 mm | 0.5 in | 0.77 in | 10 mm | 7-SIP Module, 5 Leads | Isolated Module | -5 V | 100 mA | ITE (Commercial), Medical | 85 °C | -40 °C | 5 V | 10.8 V | Through Hole | 5.2 kV | 13.2 V | 2 | SCP | 100 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MEJ1D12 Series
Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 10.8V - 13.2V Input
