NC20Q00474JBA
ActiveKYOCERA AVX
THERM NTC 470KOHM 4300K 1206
NC20Q00474JBA
ActiveKYOCERA AVX
THERM NTC 470KOHM 4300K 1206
Description
General part information
NC20Q00474JBA

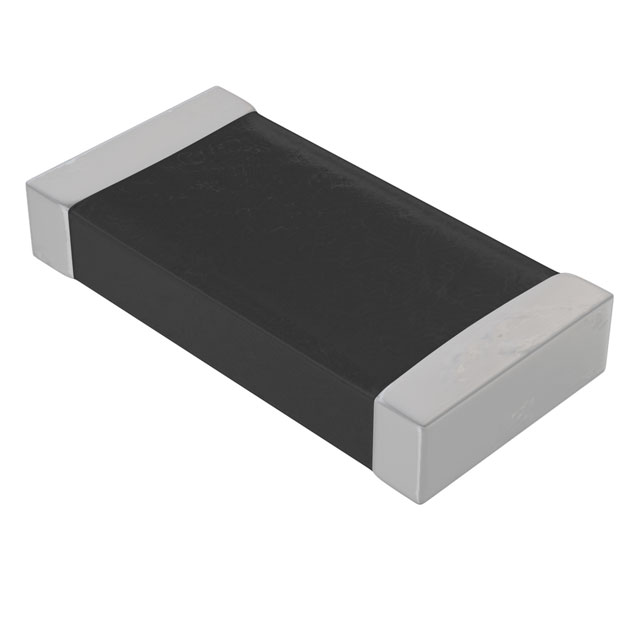

NTC Thermistor 470k 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NC20Q00474JBA |
|---|---|
| B Value (25/85) | 4300 K |
| B Value Tolerance | 3 % |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power - Max | 240 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 470 kOhm |
| Resistance Tolerance (%) | 5 % |
