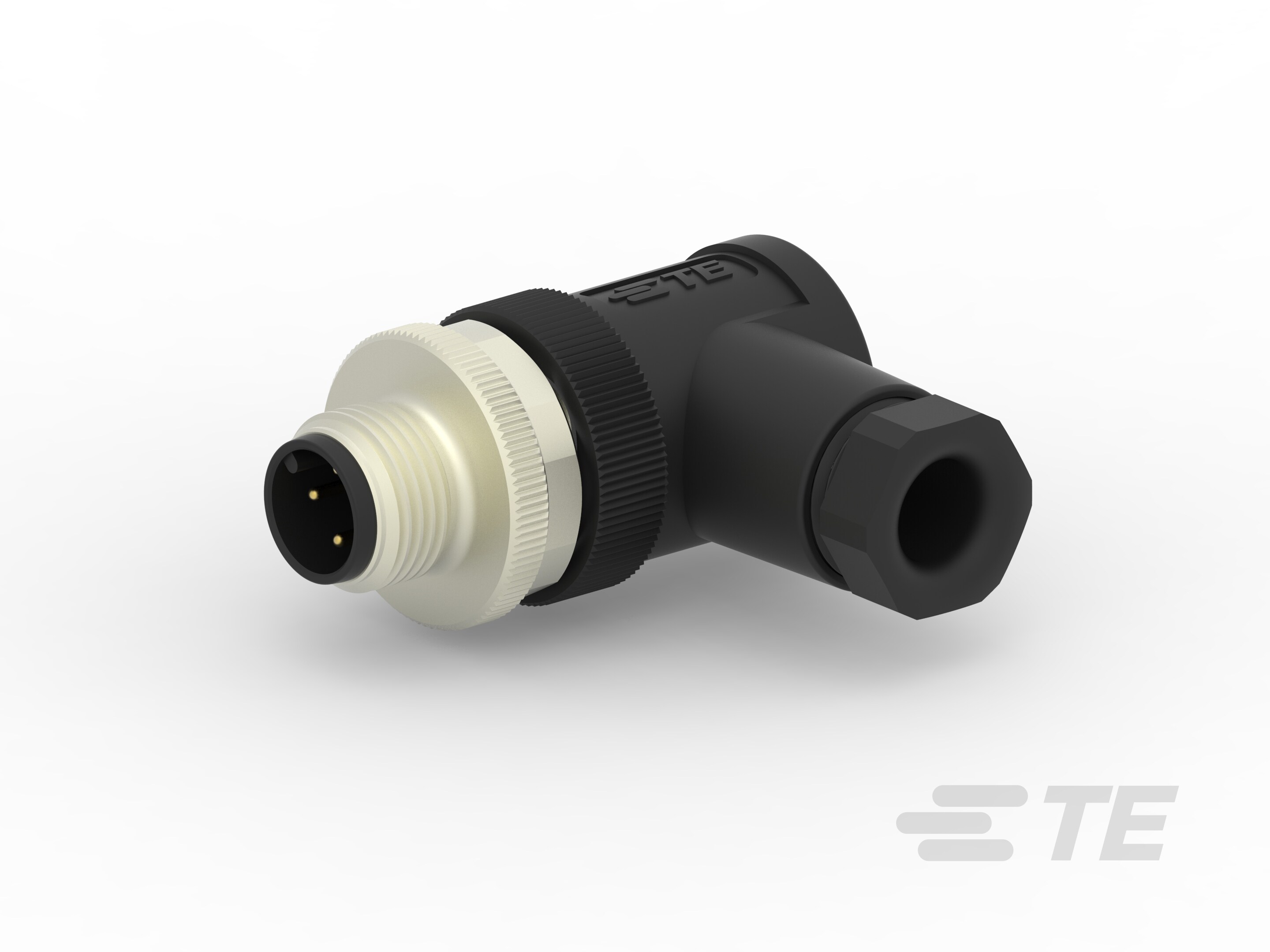

Specification	T4113001041-000

Applications	Industrial
Backshell Material, Plating	Polybutylene Terephthalate (PBT), Glass Filled
Cable Opening (Max)	0.236 in
Cable Opening (Min)	0.157 in
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Material	Zinc Alloy
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 V

T41130 Series

Part	Backshell Material, Plating	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Primary Material	Shell Finish	Mounting Type	Insert Material	Contact Finish Thickness - Mating	Features	Termination	Shielding	Color	Shell Size - Insert	Current Rating	Cable Opening (Min)	Cable Opening (Max)	Voltage Rating	Fastening Type	Number of Positions	Contact Finish - Mating	Orientation	Applications	Contact Material	Connector Type	Plating	Backshell Material
TE Connectivity AMP Connectors T4113001032-000	Glass Filled Polybutylene Terephthalate (PBT)	-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-3	4 A	0.157 in	0.236 in	250 V	Threaded	3	Silver	A	Industrial	Brass	Male Pins Receptacle
TE Connectivity AMP Connectors T4113001042-000	Glass Filled Polybutylene Terephthalate (PBT)	-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-4	4 A	0.157 in	0.236 in	250 V	Threaded	4	Silver	A	Industrial	Brass	Male Pins Receptacle
TE Connectivity AMP Connectors T4113011031-000		-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	3 µin	Backshell	Screw	Shielded	Silver	M12-3	4 A	0.157 in	0.236 in	250 V	Threaded	3	Gold	A	Industrial	Brass	Male Pins Receptacle	Nickel	Brass
TE Connectivity AMP Connectors T4113002051-000	Glass Filled Polybutylene Terephthalate (PBT)	-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	3 µin	Backshell	Screw	Unshielded	Black Silver	M12-5	4 A	0.236 in	0.315 in	60 V	Threaded	5	Gold	A	Industrial	Zinc Alloy	Male Pins Receptacle
TE Connectivity AMP Connectors T4113002052-000	Glass Filled Polybutylene Terephthalate (PBT)	-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-5	4 A	0.236 in	0.315 in	60 V	Threaded	5	Silver	A	Industrial	Brass	Male Pins Receptacle
TE Connectivity AMP Connectors T4113002041-000	Glass Filled Polybutylene Terephthalate (PBT)	-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	3 µin	Backshell	Screw	Unshielded	Black Silver	M12-4	4 A	0.236 in	0.315 in	250 V	Threaded	4	Gold	A	Industrial	Zinc Alloy	Male Pins Receptacle
TE Connectivity AMP Connectors T4113011081-000		-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	3 µin	Backshell	Screw	Shielded	Silver	M12-8	2 A	0.157 in	0.236 in	30 V	Threaded	8	Gold	A	Industrial	Zinc Alloy	Male Pins Receptacle	Nickel	Brass
TE Connectivity AMP Connectors T4113012021-000		-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	3 µin	Backshell	Screw	Shielded	Silver	M12-2	4 A	0.236 in	0.315 in	250 V	Threaded	2	Gold	A	Industrial	Brass	Male Pins Receptacle	Nickel	Brass
TE Connectivity AMP Connectors T4113001052-000	Glass Filled Polybutylene Terephthalate (PBT)	-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-5	4 A	0.157 in	0.236 in	60 V	Threaded	5	Silver	A	Industrial	Brass	Male Pins Receptacle
TE Connectivity AMP Connectors T4113012051-000		-40 °C	85 °C	Dust Tight Waterproof	IP67	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon PA Polyamide	3 µin	Backshell	Screw	Shielded	Silver	M12-5	4 A	0.236 in	0.315 in	60 V	Threaded	5	Gold	A	Industrial	Zinc Alloy	Male Pins Receptacle	Nickel	Brass
