MAL203858109E3
ObsoleteVishay Dale
CAP ALUM 10UF 20% 63V RADIAL TH
MAL203858109E3
ObsoleteVishay Dale
CAP ALUM 10UF 20% 63V RADIAL TH
Description
General part information
MAL203858109E3

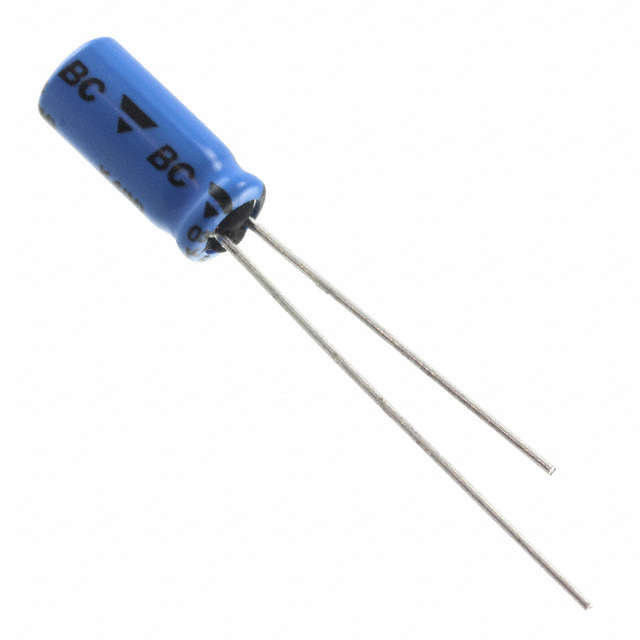

10 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2500 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL203858109E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.079 in |
| Lifetime | 2500 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Ripple Current | 105 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
