1478670-7
ObsoleteTE Connectivity AMP Connectors

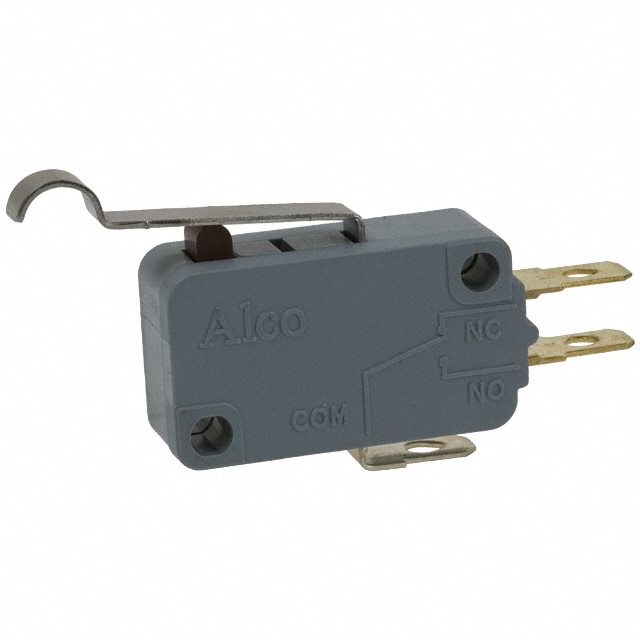

SWITCH SNAP ACT SPDT 0.1A 125V
1478670-7
ObsoleteTE Connectivity AMP Connectors
SWITCH SNAP ACT SPDT 0.1A 125V
Description
General part information
1478670-7
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1478670-7 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating | 100 mA |
| Differential Travel (Linear) | 0.047 in |
| Electrical Life (Cycles) | 1000000 Cycles |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 35 gf |
| Operating Position (Length) | 0.732 in |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -20 °C |
| Overtravel (Linear) | 0.051 in |
| Pretravel (Length) | 0.157 in |
| Quick Connect Size (0.187") | 0.187 in |
| Release Force | 6 gf |
| Switch Function | On-Mom |
| Termination Style | Solder, Quick Connect |
| Voltage Rating - AC | 125 V |
