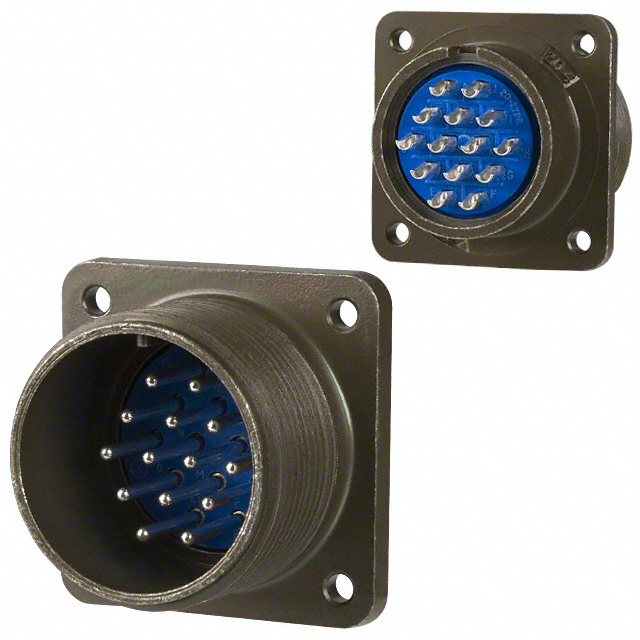

Specification	97-3102A-20-27P(946)

Applications	Automotive, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Threaded
Insert Material	Diallyl Phthalate, DAP
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	14
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Black Zinc Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	27
Shell Size - Insert (Minimum)	20
Shielding	Unshielded
Termination	Solder Cup

97-3102A20 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Orientation	Shell Material	Fastening Type	Contact Material	Mounting Feature	Connector Type	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Finish	Primary Material	Termination	Shielding	Mounting Type	Color	Number of Positions	Applications	Contact Finish - Mating	Shell Size - Insert Width	Shell Size - Insert Length
Amphenol Aerospace Operations 97-3102A20-29PZ	125 °C	-55 °C	DAP Diallyl Phthalate	Z	Aluminum Alloy	Threaded	Copper Alloy	Flange	Female Sockets Receptacle	20	29	Cadmium Olive Drab Chromate	Metal	Solder Cup	Unshielded	Panel Mount	Olive Drab	17	Automotive Industrial	Silver
Amphenol Aerospace Operations 97-3102A-20-21S	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Female Sockets Receptacle	20	21	Cadmium Olive Drab Chromate	Metal	Solder Cup	Unshielded	Panel Mount	Olive Drab	9	Automotive Industrial	Silver
Amphenol Aerospace Operations 97-3102A-20-29S(946)	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Female Sockets Receptacle	20	29	Black Zinc Alloy	Metal	Solder Cup	Unshielded	Panel Mount	Black	17	Automotive Industrial	Silver
Amphenol Aerospace Operations 97-3102A-20-4S	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Female Sockets Receptacle			Cadmium Olive Drab Chromate	Metal	Solder Cup	Unshielded	Panel Mount	Olive Drab	4	Automotive Industrial	Silver	4 mm	20 mm
Amphenol Aerospace Operations 97-3102A-20-16P(946)	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Male Pins Receptacle			Black Zinc Alloy	Metal	Solder Cup	Unshielded	Panel Mount	Black	9	Automotive Industrial	Silver	16 mm	20 mm
Amphenol Aerospace Operations 97-3102A-20-27S(946)	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Female Sockets Receptacle	20	27	Black Zinc Alloy	Metal	Solder Cup	Unshielded	Panel Mount	Black	14	Automotive Industrial	Silver
Amphenol Aerospace Operations 97-3102A-20-4P(946)	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Male Pins Receptacle			Black Zinc Alloy	Metal	Solder Cup	Unshielded	Panel Mount	Black	4	Automotive Industrial	Silver	4 mm	20 mm
Amphenol Aerospace Operations 97-3102A-20-3P	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Male Pins Receptacle			Cadmium Olive Drab Chromate	Metal	Solder Cup	Unshielded	Panel Mount	Olive Drab	3	Automotive Industrial	Silver	3 mm	20 mm
Amphenol Aerospace Operations 97-3102A-20-8S(689)	125 °C	-55 °C	DAP Diallyl Phthalate	N (Normal)	Aluminum Alloy	Threaded	Copper Alloy	Flange	Female Sockets Receptacle			Electroless Nickel	Metal	Solder Cup	Unshielded	Panel Mount	Silver	6	Automotive Industrial	Silver	8 mm	20 mm
Amphenol Aerospace Operations 97-3102A20-27SY	125 °C	-55 °C	DAP Diallyl Phthalate	Y	Aluminum Alloy	Threaded	Copper Alloy	Flange	Female Sockets Receptacle	20	27	Cadmium Olive Drab Chromate	Metal	Solder Cup	Unshielded	Panel Mount	Olive Drab	14	Automotive Industrial	Silver
