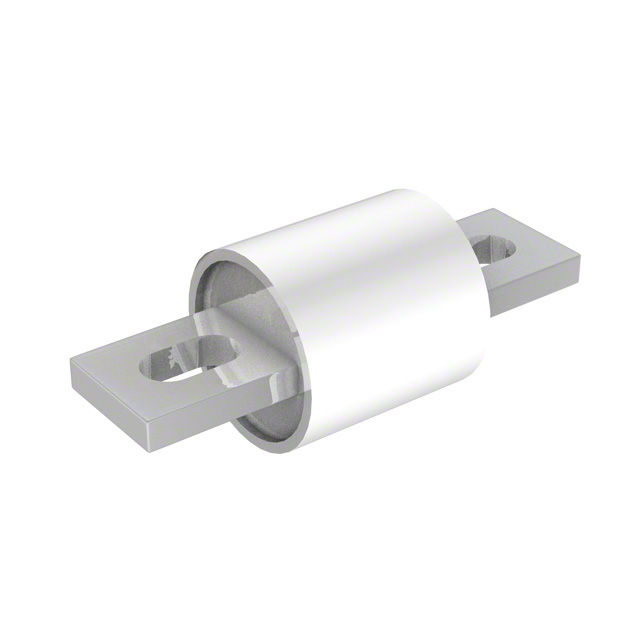

FWX-700A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 700A 250VAC/VDC
FWX-700A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 700A 250VAC/VDC
Description
General part information
FWX-700A
700A 250 VAC 250 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWX-700A |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 700 A |
| Fuse Type | Cartridge |
| Melting I²t | 48800 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 2 in |
| Size / Dimension Length | 3.84 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
