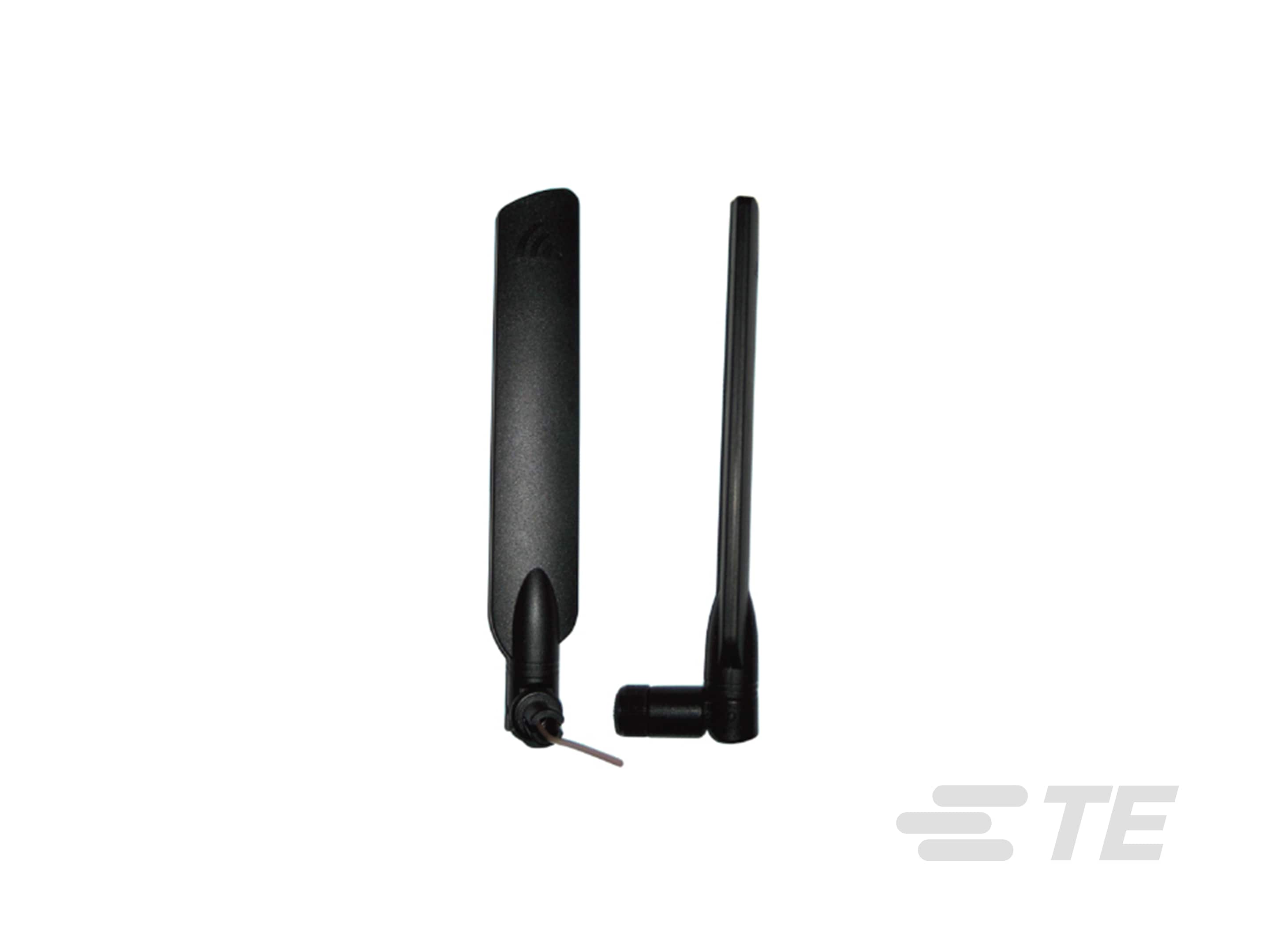

Dipol,Hepta,SMAM 824-2500MHz,2-3dBi-MAF94300

MAF94300

Active
TE Connectivity AMP Connectors

DIPOL,HEPTA,SMAM 824-2500MHZ,2-3DBI

Find alt
Dipol,Hepta,SMAM 824-2500MHz,2-3dBi-MAF94300

MAF94300

Active
TE Connectivity AMP Connectors

DIPOL,HEPTA,SMAM 824-2500MHZ,2-3DBI

Find alt

Description

General part information

MAF94300

Terminal/Duck Antenna, Multi Band, Wi-Fi, External Mount, Snap-In, SMA, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationMAF94300
Antenna TypeTilt, Whip
ApplicationsAWS, GSM, Wi-Fi, WLAN, GPS
Frequency (Center/Band)1.9GHz, 2.4GHz, 1.8GHz, 900MHz, 1.575GHz, 2.1GHz, 850MHz, 1.47GHz
Frequency (Center/Band) - 1850 MHz
Frequency (Center/Band) - 2900 MHz
Frequency (Center/Band) - 31.47 GHz
Frequency (Center/Band) - 41.575 GHz
Frequency (Center/Band) - 51.8 GHz
Frequency (Center/Band) - 61.9 GHz
Frequency (Center/Band) - 72.1 GHz
Frequency (Center/Band) - 82.4 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum815 MHz
Frequency Range (Band 2) Maximum1.511 GHz
Frequency Range (Band 2) Minimum1.427 GHz
Frequency Range (Band 3) Maximum2.17 GHz
Frequency Range (Band 3) Minimum1.71 GHz
Frequency Range (Band 4) Maximum2.5 GHz
Frequency Range (Band 4) Minimum2.4 GHz
Gain3 dBi
Height (Max)6.339 in
Mounting TypeConnector Mount
Number of Bands7
Power - Max10 VA
RF Family/StandardCellular, Navigation, WiFi
Termination TypeSMA Male
VSWR2.5
