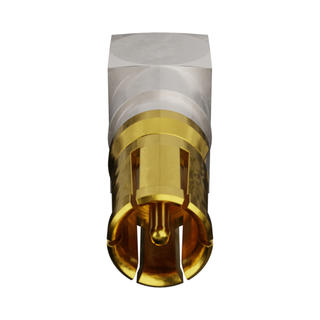

Specification	1731121103

Contact Finish	Gold
Contact Finish Thickness (Inner)	8 µin
Contact Finish Thickness (Outer)	8 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Termination	PCB, Solder
Contact Type	Right Angle, Female Socket
Termination Finish	Tin, Gold
Termination Finish Thickness (Inner)	8 µin
Termination Finish Thickness (Outer)	200 µin
Type	Coaxial

173112 Series

FCT Plastic Dust Cap for Size 3 Male D-sub, Black, with 75.00mm Chain and Clip, Antistatic

...

Part	Features	Contact Form	Contact Type	Contact Material	Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish Thickness	Contact Termination	Contact Finish	Contact Size	Termination Finish	Termination Finish Thickness	Accessory Type	Length - Threaded Portion Below Head	Thread Size	For Use With/Related Products
Molex 1731120225	High Density (HD)	Machined	Male Pin	Brass	Signal	28 AWG	24 AWG	51.2 µin	Crimp	Gold	22
Molex 1731120912		Machined	Male Pin		Power			31.5 µin	Press-Fit	Gold		Tin	39.4 µin
Molex 1731121086		Machined	Female Socket		Power				Solder Cup	Gold
Molex 1731121170
Molex 1731121350	Hardware Included													Jackscrew Socket	0.315 in	4-40 Screw 4-40 Socket	D-Sub Connectors
Molex 1731121329
Molex 1731120722		Machined	Male Pin	Brass	Signal	28 AWG	26 AWG	8 µin	Crimp	Gold		Gold	7.87 µin
Molex 1731121358
Molex 1731121270
Molex 1731120893		Machined	Male Pin	Copper Alloy	Power	18 AWG	2 AWG	8 µin	Solder Cup	Gold	8	Tin	196.8 µin
