LCCA30386-FT3
ActivePasternack
SMA MALE RIGHT ANGLE TO MMCX PLU
LCCA30386-FT3
ActivePasternack
SMA MALE RIGHT ANGLE TO MMCX PLU
Description
General part information
LCCA30386-FT3

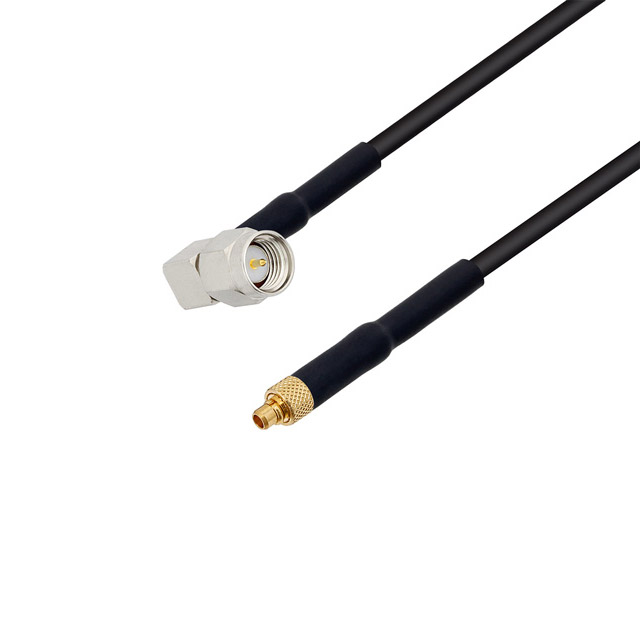

Cable Assembly Coaxial SMA to MMCX CA-100 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30386-FT3 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | CA, 100 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, MMCX |
