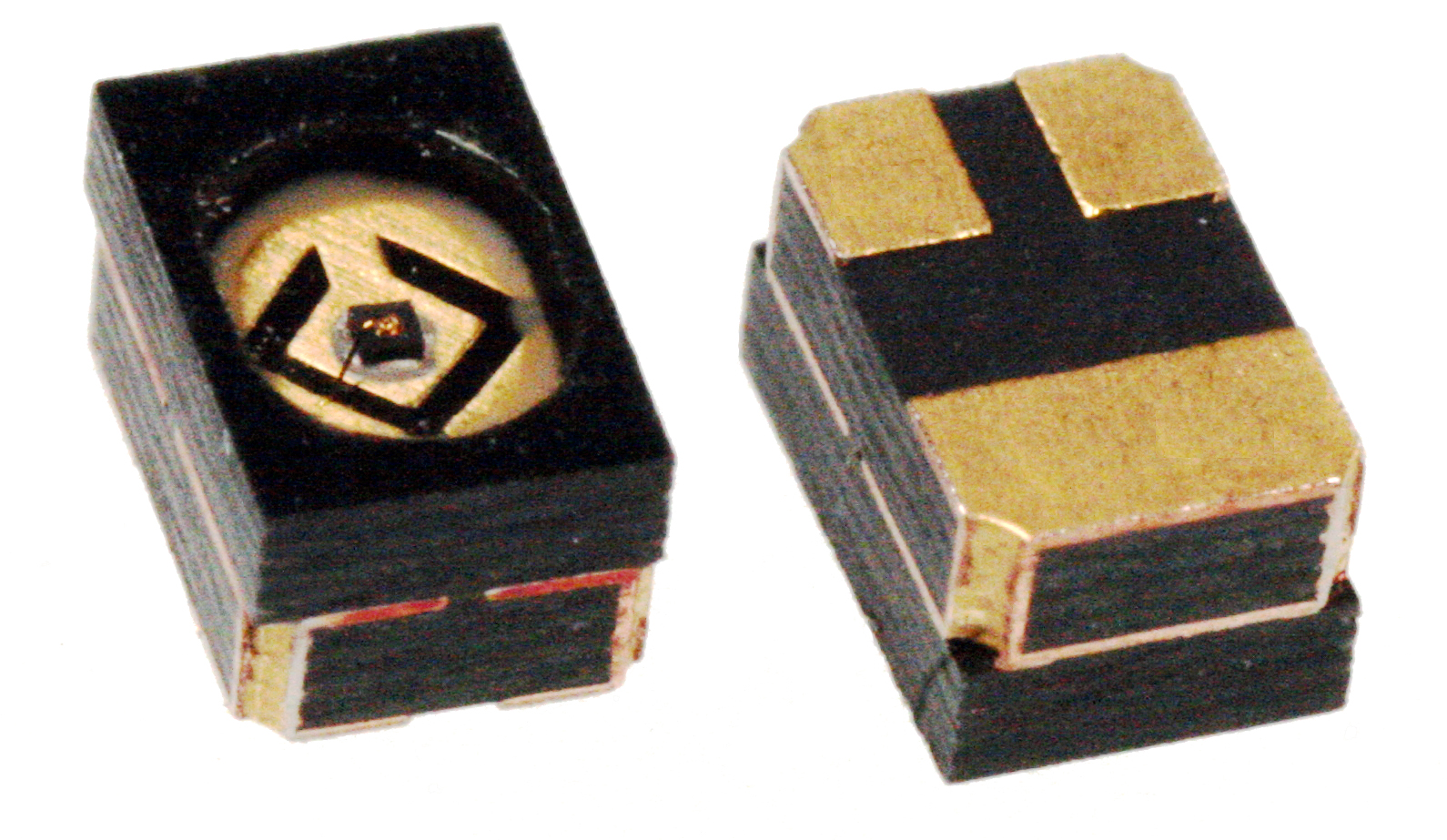

OPR5200
ActiveTT Electronics/BI
EMITTER IR 890NM 50MA MINI
OPR5200
ActiveTT Electronics/BI
EMITTER IR 890NM 50MA MINI
Description
General part information
OPR5200
EMITTER IR 890NM 50MA MINI
Technical Specifications
Parameters and characteristics for this part
| Specification | OPR5200 |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | Top View |
| Package / Case | Mini |
| Type | Infrared (IR) |
| Viewing Angle | 90 ° |
| Voltage - Forward (Vf) (Max) | 1.8 V |
| Wavelength | 890 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
App Note 240: Surface Mount Chip Carriers
PCN 1009 OPR5200 OPR550
OPR5200 5500
RoHs Letter for Juarez Site
RoHs 3 Declaration Form for Juarez Site
Sensors Product Selection Guide
REACH Compliance for Juarez Site
Optoelectronics for Medical Tri-Fold
Juarez ISO 9001
Conflict Minerals Policy for Juarez Site
Quality Manual for Juarez Site
Custom Optoelectronic Assemblies Tri-Fold
App Note 237: SMCC Microelectronic History and Handling Considerations
Supplier Quality Requirements Manual
Optoelectronics One Pager
App Note 228: Thermal Management of Visible LEDs
Lead Free and RoHs Compliance for Juarez Site
Declaration of Mineral Conflict Free Material for Juarez Site
OPR5200 | Datasheet
