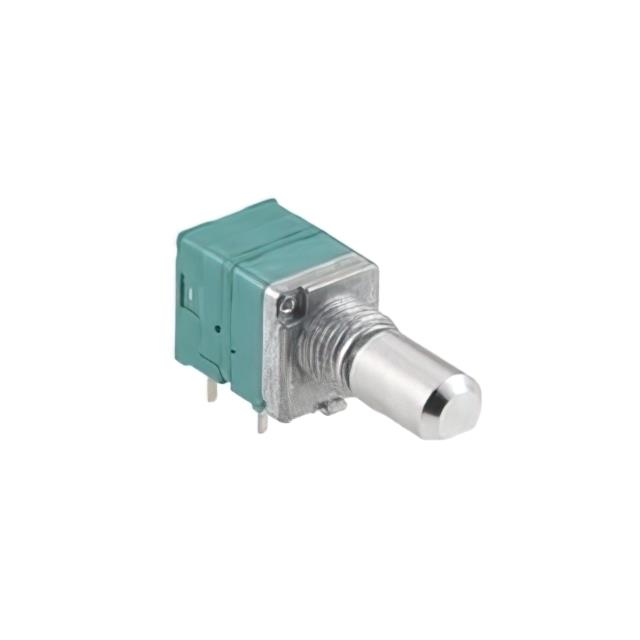

RK0971114Z1N
ActiveALPS ALPINE CO., LTD
POTENTIOMETERS SINGLE-UNIT / L1=15MM / 10K OHM, 1B / WITH 0.5MM PUSH SW : 5R4211 / WITH CENTER DETENT
RK0971114Z1N
ActiveALPS ALPINE CO., LTD
POTENTIOMETERS SINGLE-UNIT / L1=15MM / 10K OHM, 1B / WITH 0.5MM PUSH SW : 5R4211 / WITH CENTER DETENT
Description
General part information
RK0971114Z1N
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns 0.05W, 1/20W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | RK0971114Z1N |
|---|---|
| Actuator Diameter | 0.236 in |
| Actuator Length | 0.591 in |
| Actuator Type | Flatted |
| Adjustment Type | Side Adjustment |
| Built in Switch | Detent |
| Bushing Thread | M7 x 0.75 |
| Bushing Thread Diameter | 7 mm |
| Bushing Thread Pitch | 0.75 mm |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 50 mW |
| Power (Watts) Options | 1/20W |
| Resistance | 10 kOhm |
| Rotation | 300 ° |
| Size - Body Face Length | 0.447 in |
| Size - Body Face Width | 0.374 in |
| Size - Body Shape | Rectangular |
| Taper | Linear |
| Termination Style | PC Pins |
| Tolerance | 20 % |
