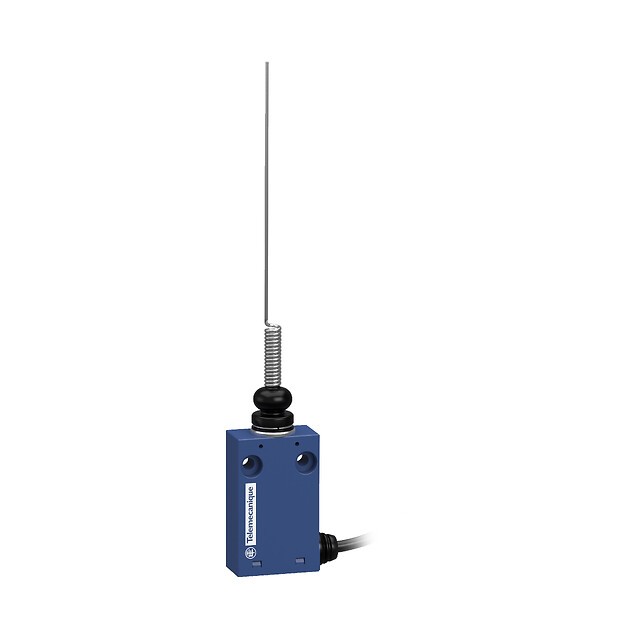

XCMH2106L1
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, MINIATURE, WOBBLE CAT WHISKER, SPST-NC, SPST-NO, 750 MA, 240 V, 0.1 N, XCMH SERIES
XCMH2106L1
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, MINIATURE, WOBBLE CAT WHISKER, SPST-NC, SPST-NO, 750 MA, 240 V, 0.1 N, XCMH SERIES
Description
General part information
XCMH2106L1
XCMH2106L1 is a XCMH series SPST-NC, SPST-NO miniature design limit switch.
Technical Specifications
Parameters and characteristics for this part
| Specification | XCMH2106L1 |
|---|---|
| Actuator Type | Cat Whisker, Spring |
| Circuit | DPST-NO/NC |
| Current Rating | 750 mA, 100 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
