GNSSDM30NM
ActivePulse Electronics
ANTENNAS ANT ACTIVE GNSS DRT MNT N-MALE

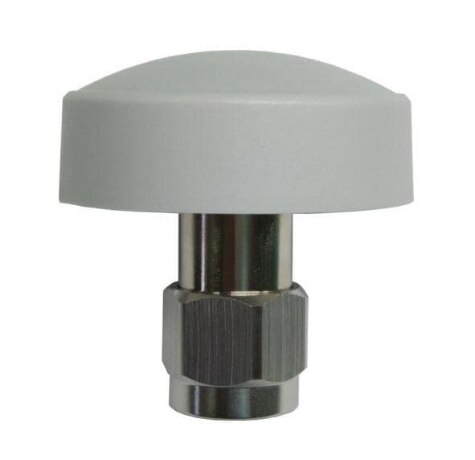

GNSSDM30NM
ActivePulse Electronics
ANTENNAS ANT ACTIVE GNSS DRT MNT N-MALE
Description
General part information
GNSSDM30NM
ANTENNAS ANT ACTIVE GNSS DRT MNT N-MALE
Technical Specifications
Parameters and characteristics for this part
| Specification | GNSSDM30NM |
|---|---|
| Antenna Type | Dome |
| Applications | GLONASS, GNSS, BEIDOU, GPS |
| Features | LNA |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz, 1.561GHz |
| Frequency (Center/Band) - 1 | 1.561 GHz |
| Frequency (Center/Band) - 2 | 1.575 GHz |
| Frequency (Center/Band) - 3 | 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.563 GHz |
| Frequency Range (Band 1) Minimum | 1.559 GHz |
| Frequency Range (Band 2) Maximum | 1.576 GHz |
| Frequency Range (Band 2) Minimum | 1.574 GHz |
| Frequency Range (Band 3) Maximum | 1.606 GHz |
| Frequency Range (Band 3) Minimum | 1.598 GHz |
| Gain | 1 dBic |
| Height (Max) | 0.827 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Termination Type | N Type Male |
| VSWR | 2 |
