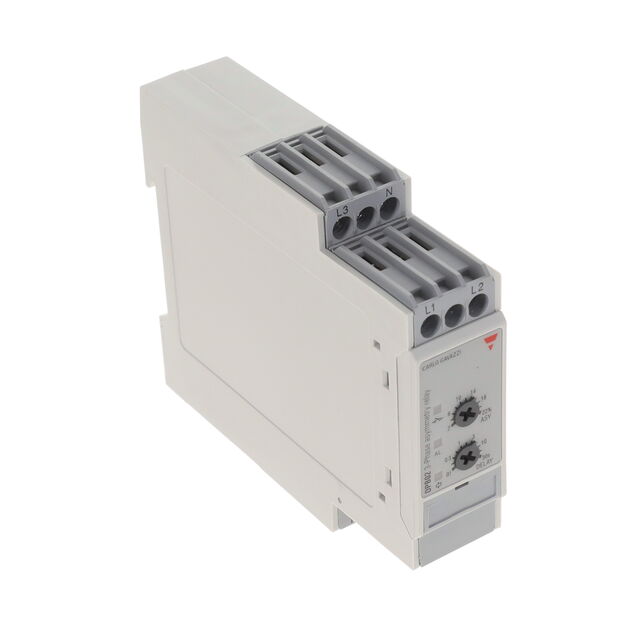

Specification	DPB02CM48

Circuit	SPDT (1 Form C)
Contact Rating (Current)	8 A
Delay Time (Maximum)	30 Sec
Delay Time (Minimum)	0.1 Sec
Mounting Type	DIN Rail
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Output Type	Relay
Trip Status	Low, Energized High
Trip Voltage (Max)	552 VAC
Trip Voltage (Min)	323 VAC
Type	Voltage Asymmetry, Phase Sequence, Phase Loss
Voltage - Supply (Maximum)	480 VAC
Voltage - Supply (Minimum)	380 VAC
