2041517-2
ActiveTE Connectivity AMP Connectors

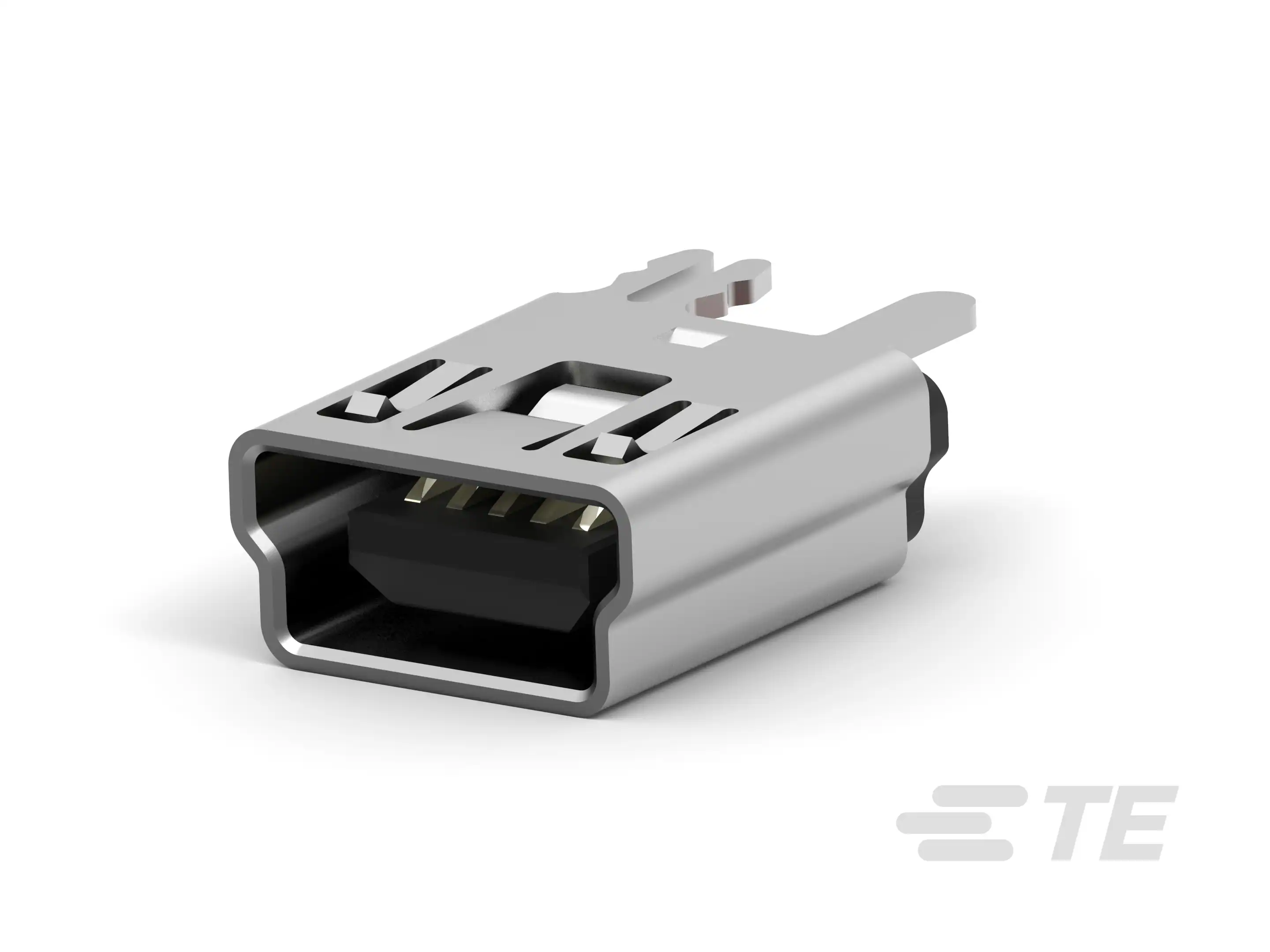

MINI USB, RCPT,V/T,DIP, B TYPE,30U"AU
2041517-2
ActiveTE Connectivity AMP Connectors
MINI USB, RCPT,V/T,DIP, B TYPE,30U"AU
Description
General part information
2041517-2
B, 2.0, Mini Profile, Receptacle, 1 Port, Top, Vertical, Tape & Reel, Flush, Through Hole - Solder, Cable-to-Board, 5 Position, USB Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2041517-2 |
|---|---|
| Connector Type | USB - mini B |
| Current Rating | 1 A |
| Gender | Receptacle |
| Mating Cycles | 5000 cycles |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
