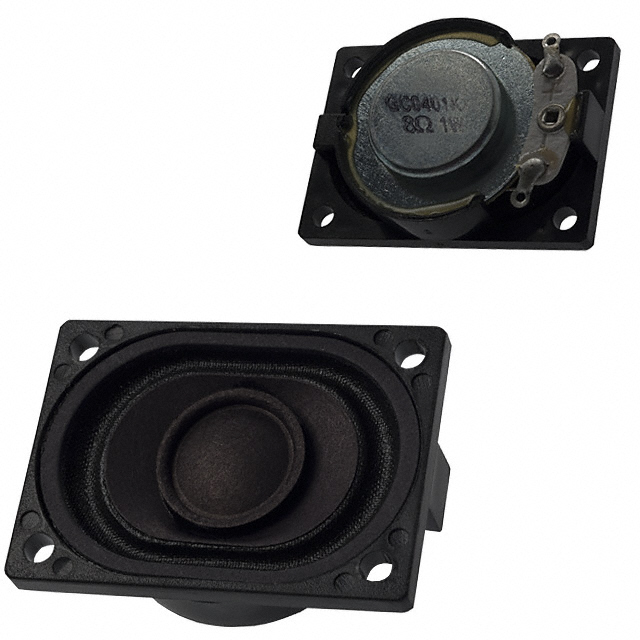

GC0401K
ActiveSame Sky (Formerly CUI Devices)
SPEAKERS NEODYMIUM IRON BORON 390HZ 2W 82DBA 8OHM RECTANGULAR SOLDER PAD
GC0401K
ActiveSame Sky (Formerly CUI Devices)
SPEAKERS NEODYMIUM IRON BORON 390HZ 2W 82DBA 8OHM RECTANGULAR SOLDER PAD
Description
General part information
GC0401K
8 Ohms General Purpose Speaker 1 W 390 Hz ~ 20 kHz Top Oval, Rectangular Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | GC0401K |
|---|---|
| Efficiency - dBA | 82 dBA |
| Efficiency - Testing Length | 500 mm |
| Efficiency - Testing Power | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 390 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 390 Hz |
| Height - Seated (Max) | 0.445 in |
| Impedance | 8 Ohm |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 2 VA |
| Power - Rated | 1 VA |
| Shape | Oval, Rectangular Frame |
| Size / Dimension Length | 1.575 in |
| Size / Dimension Width | 1.122 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
