6-2213362-2

Active

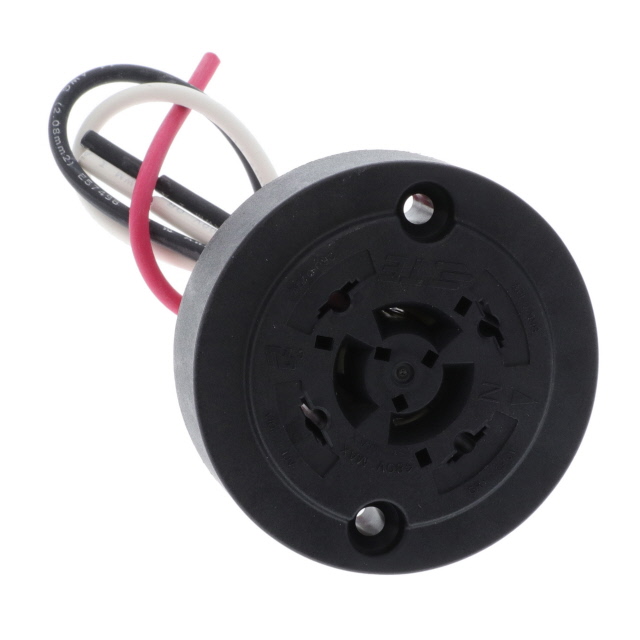

LED STREET LIGHT CONNECTOR, LUMAWISE ENDURANCE N SERIES, 3 CONTACTS, RECEPTACLE, 600 V, 15 A

Active

LED STREET LIGHT CONNECTOR, LUMAWISE ENDURANCE N SERIES, 3 CONTACTS, RECEPTACLE, 600 V, 15 A

Description

General part information

Connector, Not Rotatable, Wire-to-Component, 3 Position, Sealable, Power, LUMAWISE Endurance N, ANSI Street Lighting Receptacles

Parameters and characteristics for this part

...

Part	Accessory Type	For Use With/Related Products	1st Connector	1st Connector Positions	Length	Color	2nd Connector	Features	1st Connector Power Positions	1st Connector Dimmable Positions	Material	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Contact Material	Termination	Housing Material	Mounting Type	Number of Positions	Style	Contact Finish	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color
TE Connectivity AMP Connectors 1-2306130-1	Cover Light Controller	Ambient Light Sensing Circuitry
TE Connectivity AMP Connectors 1-2315539-1	Cover Light Controller	Ambient Light Sensing Circuitry
TE Connectivity AMP Connectors 2213848-2			3 Position Socket	3	18.9 in	Individual Multiple	Wire Leads	Dimming
TE Connectivity AMP Connectors 2213627-1	Dimming Receptacle	ANSI C136.41-2013
TE Connectivity AMP Connectors 2-2332966-1			3 Power) 5 Position (2 Dimmable Socket	5	12 in	Individual Multiple	Wire Leads	Dimming	3	2
TE Connectivity AMP Connectors 2359482-4	Module Base					Black					Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 2213627-8
TE Connectivity AMP Connectors 1-2314786-2												Dust Tight Water Resistant	IP66	10 A	Copper Alloy	Poke-In	PBT Polybutylene Terephthalate	PCB	7	Board Cable/Wire	Gold	Base - Panel Mount	-40 °C	85 °C	Black
TE Connectivity AMP Connectors 2213469-1	Gasket
TE Connectivity AMP Connectors 2468181-2															Copper Alloy	Poke-In	Glass Filled PBT Polybutylene Terephthalate	PCB	5	Board Cable/Wire	Gold	Base - Panel Mount	-40 °C	85 °C	Black
