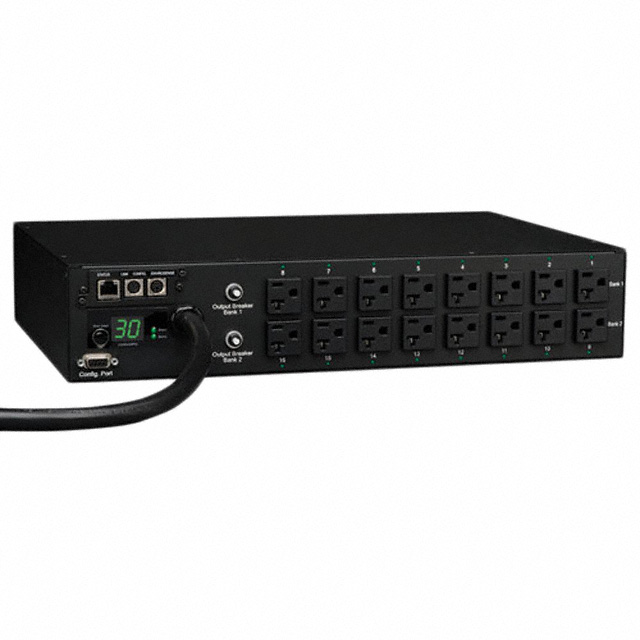

PDUMH30NET
ActiveEaton Tripp Lite
POWER DISTRIBUTION, 16 OUTLETS, 127 V, 30 A, 317.5 MM, 445 MM, 3 M
PDUMH30NET
ActiveEaton Tripp Lite
POWER DISTRIBUTION, 16 OUTLETS, 127 V, 30 A, 317.5 MM, 445 MM, 3 M
Description
General part information
PDUMH30NET
POWER DISTRIBUTION, 16 OUTLETS, 127 V, 30 A, 317.5 MM, 445 MM, 3 M
Technical Specifications
Parameters and characteristics for this part
| Specification | PDUMH30NET |
|---|---|
| AC Outlets (Count) | 16 count |
| Approval Agency | NOM, UL |
| Connector - AC Input | NEMA L5-30P |
| Connector - AC Output | NEMA 5-20R |
| Cord Length | 10 ft |
| Current - Max | 30 A |
| Features | Load Meter |
| Housing Material | Steel |
| Mounting Type | Rack, Horizontal |
| Overload Protection | Circuit Breaker(s) |
| Region Utilized | North America |
| Type | PDU (Power Distribution Unit) |
| Voltage - Input | 120 VAC |
