9001K3L35GH5
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
9001K3L35GH5
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
Description
General part information
9001K3L35GH5

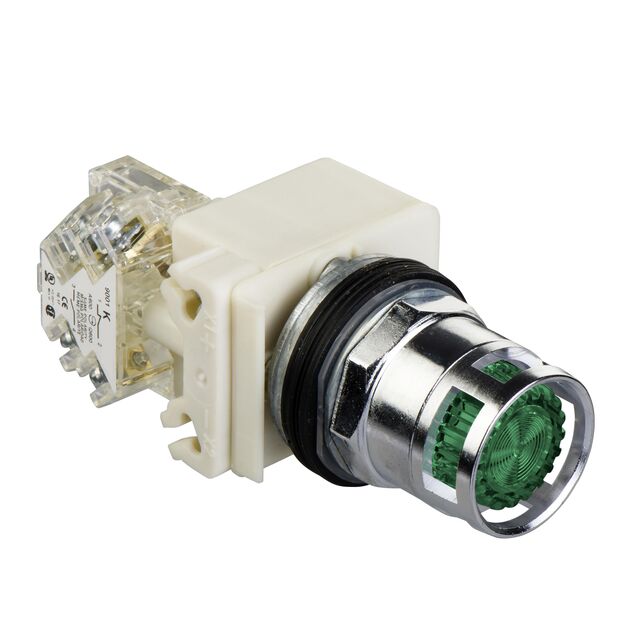

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001K3L35GH5 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | SPST-NO |
| Color | Green |
| Color - Actuator/Cap | Green |
| Current Rating | 10 A |
| Illumination Type | Incandescent |
| Illumination Voltage (Nominal) (Maximum) | 28 VDC |
| Illumination Voltage (Nominal) (Minimum) | 24 VAC/DC |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
