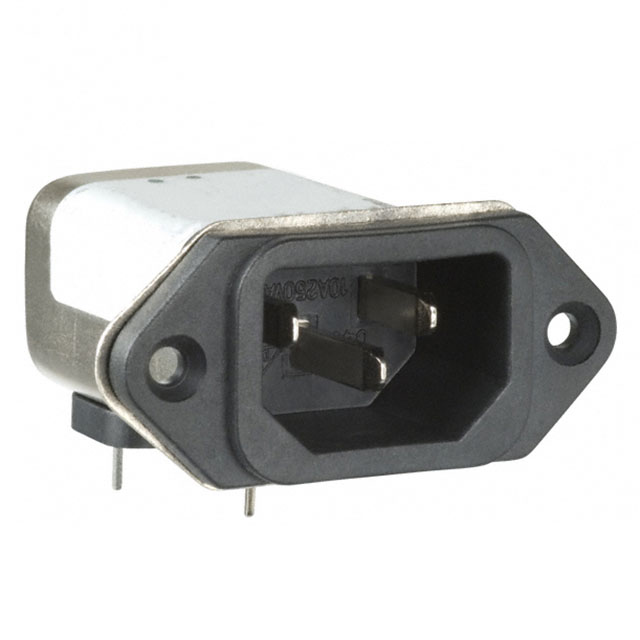

Specification	1-6609006-5

Accomodates a Fuse	No
Approval Agency	VDE, CSA, UL
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Application	Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Mounting Type	Right Angle, Through Hole, Flange, Panel Mount
Number of Positions	3
Panel Cutout Length	30.48 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	22.86 mm
Termination	Solder
Voltage Rating - Appliance Inlet (Maximum)	250 VAC
Voltage Rating - Appliance Inlet (Minimum)	120 VAC

6609006 Series

Part	Connector Style	Voltage Rating - Appliance Inlet (Minimum)	Voltage Rating - Appliance Inlet (Maximum)	Panel Thickness (Max)	Panel Thickness (Min)	Termination	Approval Agency	Number of Positions	Current Rating - Filter	Filter Type	Filter Subtype	Filter Application	Mounting Type	Current Rating - Appliance Inlet	Accomodates a Fuse	Connector Type	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length
TE Connectivity AMP Connectors 4-6609006-0	IEC 320-C14	120 VAC	250 VAC	0.068 in	0.031 in	Wire Leads	CSA UL VDE	3	10 A	Filtered	EMI RFI	Commercial	Panel Mount Snap-In	10 A	No	Male Blades Receptacle	22.86 mm	Rectangular	30.48 mm
